nVent ILSCO CLNS-4-38

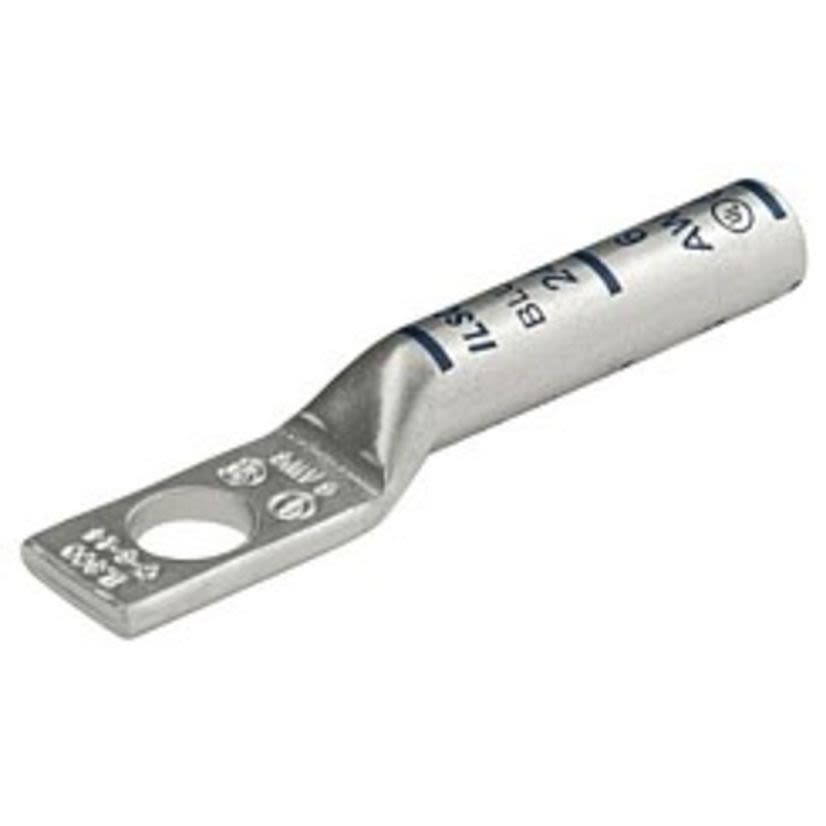

nVent ILSCO CLNS-4-38 CLNS 1-Hole Lug Compression Connector, 6 to 4 AWG Flex Copper Conductor, Die Code: ILD-29, 3/8 in Stud, Tin Plated Copper
nVent ILSCO CLNS-4-38
nVent ILSCO CLNS-4-38 CLNS 1-Hole Lug Compression Connector, 6 to 4 AWG Flex Copper Conductor, Die Code: ILD-29, 3/8 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #CLNS-4-38
Werner Part #3896280
UPC783669630381
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #CLNS-4-38
Werner Part #3896280
UPC783669630381
Product Description
nVent ILSCO SureCrimp® Lug Compression Connector, 1-Hole, Series: CLNS, Flex Copper Conductor, 6 to 4 AWG Conductor, Die Code: ILD-29, 600 VAC to 35 kV VAC, 3/8 in Stud, 0.875 in L x 0.486 in W x 0.093 in THK Tongue, 2.234 in Overall Length, Chamfered/Long Barrel, 0.25 in ID x 0.343 in OD x 1.125 in L Barrel, 1.187 in L Wire Strip, 90 deg C, 0.406 in Mounting Hole, Tin Plated Copper, Gray, 0.486 in W
Attributes
Documents
Features
Specifications
Attributes
BABA CompliantYes
Barrel Size0.25 in ID x 0.343 in OD x 1.125 in L
Barrel TypeChamfered/Long
ColorGray
Conductor size6 to 4 AWG
Conductor TypeFlex Copper
Country of OriginUnited States
Die CodeILD-29
Dimensions0.486 in W
ManufacturernVent
MaterialTin Plated Copper
Mounting Hole Type0.406 in
Overall Length2.234 in
SeriesCLNS
Temperature Rating90 deg C
Tongue Size0.875 in L x 0.486 in W x 0.093 in THK
Type1-Hole
Type / Style1-Hole
Voltage Rating600 VAC to 35 kV VAC
Documents
Features
Manufactured from high strength seamless copper tubing, electro-tin platedColor codedOffers maximum conductivity and excellent crimping characteristicsProvides low contact resistanceFor easy conductor insertionIdentifies the proper compression dieApplication versatilityReduces inventory requirementsSuitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used1 mounting hole4 AWG solid alternate conductor sizeWithout sight holeElectro-tin platedLong barrel length with chamfered entry8 AWG to 500 kcmil, 8 to 2 AWG solid UL467 listed for grounding and bonding applications
Specifications
1.187 in L Wire Strip
