nVent ILSCO AK-4

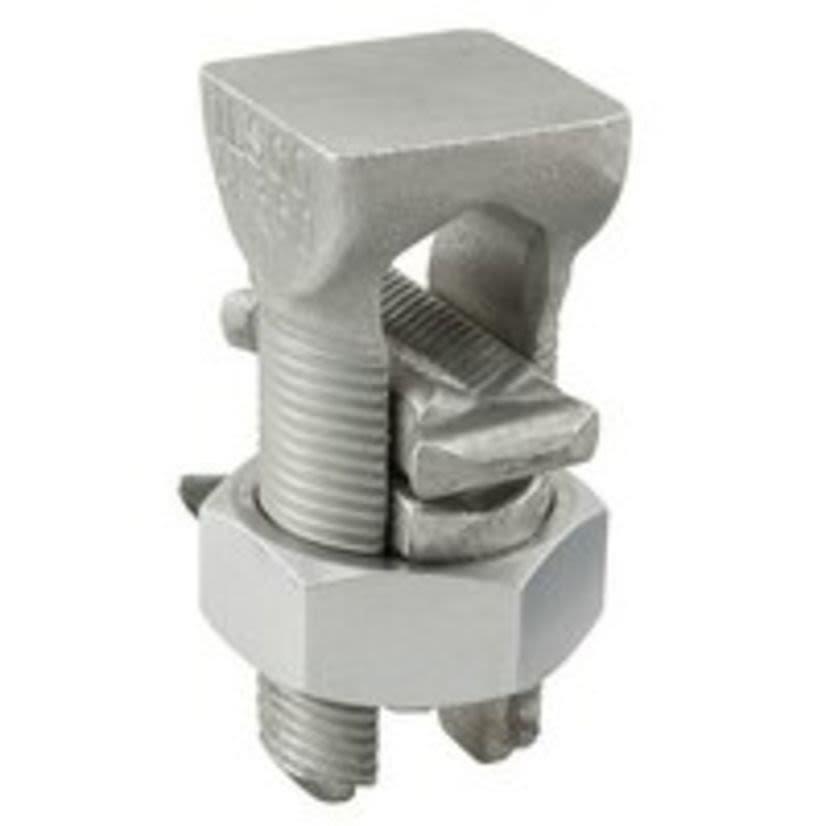

nVent ILSCO AK-4 Type AK Dual Rated Split Bolt Connector, 8 to 4 AWG, 10 to 4 AWG Solid/Stranded Aluminum Conductor, 0.62 x 1.38 in, Aluminum Alloy
nVent ILSCO AK-4
nVent ILSCO AK-4 Type AK Dual Rated Split Bolt Connector, 8 to 4 AWG, 10 to 4 AWG Solid/Stranded Aluminum Conductor, 0.62 x 1.38 in, Aluminum AlloyIn Stock: 7more info
|
BrandnVent ILSCO
MFG #AK-4
Werner Part #3877214
UPC783669008319
In Stock: 7more info
|
BrandnVent ILSCO
MFG #AK-4
Werner Part #3877214
UPC783669008319
Product Description
nVent ILSCO ClearChoice® Split Bolt Connector, Type AK Dual Rated, Solid/Stranded Aluminum Conductor, 8 to 4 AWG, 10 to 4 AWG Conductor, 0.62 x 1.38 in Bolt, 2000 VAC, Specifications: 0.81 in Hex Nut, 165 in-lb Recommended Torque, 90 deg C, Aluminum Alloy, Electro-Plated Tin, 1.38 in H x 0.81 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
BABA CompliantYes
Conductor size8 to 4 AWG, 10 to 4 AWG
Conductor TypeSolid/Stranded Aluminum
Country of OriginUnited States
Dimensions1.38 in H x 0.81 in W
FinishElectro-Plated Tin
ManufacturernVent
MaterialAluminum Alloy
Temperature Rating90 deg C
TypeType AK Dual Rated
Type / StyleType AK Dual Rated
Voltage Rating2000 VAC
Documents
Features
Manufactured from heat treated aluminum alloy provides maximum conductivity and strength for copper and aluminum conductorsElectro tin plated provides low contact resistanceSpacer bar separates dissimilar metals which prevents galvanic corrosionTriangular edges bite into the conductor to break through surface oxides which eliminates wire brushingApplication versatilityHex head provides ease of installation with standard wrenchesProvides maximum conductivity and strength for copper and aluminum conductorsProper high voltage spacing and insulation techniques must be usedBite into the conductor to break through surface oxides which eliminates wire brushingProvides low contact resistanceSeparates dissimilar metals which prevents galvanic corrosionProvides ease of installation with standard wrenches
Specifications
0.81 in Hex Nut, 165 in-lb Recommended Torque
