IDEAL 61-763

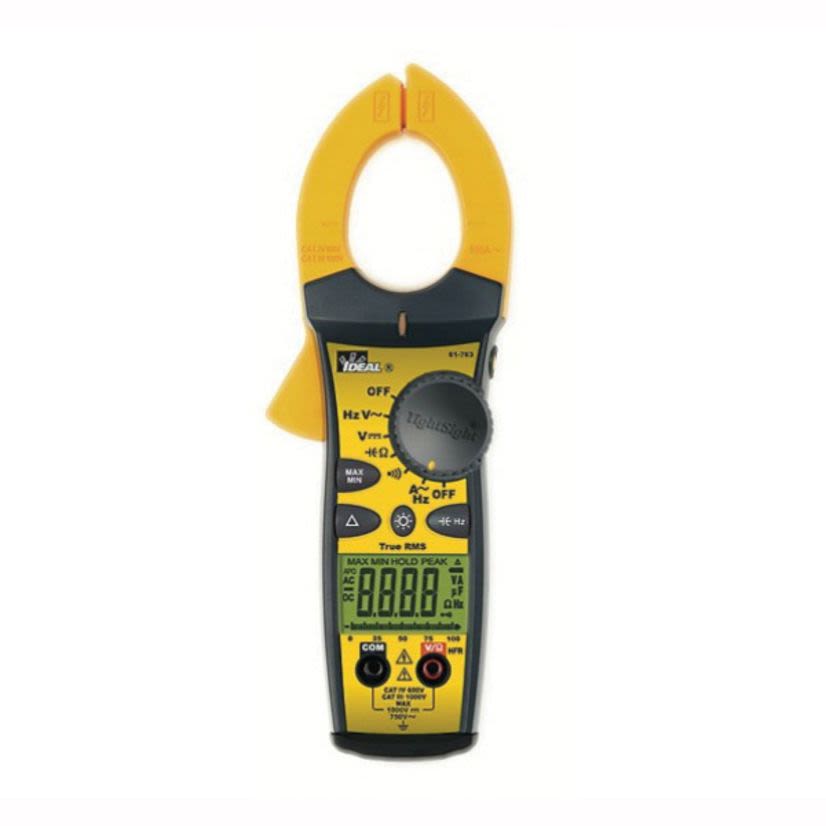

IDEAL TightSight 61-763 Clamp Meter, 0 to 750 V AC, 0 to 999 V DC, 0 to 660 A AC/DC, 0 to 999.9/1000 to 9999 Ohm, 20 to 400 Hz, 1.42 in Jaw, Backlit LCD Display
IDEAL 61-763
IDEAL TightSight 61-763 Clamp Meter, 0 to 750 V AC, 0 to 999 V DC, 0 to 660 A AC/DC, 0 to 999.9/1000 to 9999 Ohm, 20 to 400 Hz, 1.42 in Jaw, Backlit LCD DisplayNon-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #61-763
Werner Part #3881506
UPC783250724017
Non-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #61-763
Werner Part #3881506
UPC783250724017
Product Description
IDEAL TightSight Clamp Meter, Series: 760, 0 to 750 V AC, 0 to 999 V DC, 0 to 660 A AC/DC Electrical Rating, 0 to 999.9/1000 to 9999 Ohm Resistance, 20 to 400 Hz Frequency, 1.42 in Jaw, 9999 Count, Backlit LCD Display, 2/6% +/-5 Digits AC Current Accuracy, 6% 5 Digits, 1.5% 5 Digits, 1% 5 Digits AC, 1% 5 Digits, 1.5% 5 Digits DC Voltage Accuracy, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, 61-763, 61-765 9 VDC 100 hr Alkaline Battery Power Source, 32 to 122 deg F Operating, 3.1 in W x 1.8 in D x 8.7 in H Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
AC Current Accuracy2/6% +/-5 Digits AC
CapacityJaw: 1.42 in
Country of OriginUS
Dimensions3.1 in W x 1.8 in D x 8.7 in H
Display TypeBacklit LCD
Electrical Ratings0 to 750 V AC, 0 to 999 V DC, 0 to 660 A AC/DC
Frequency Rating20 to 400 Hz
Jaw_Capacity1.42 in
ManufacturerIdeal Industries
Operating Temperature32 to 122 deg F
Power Source61-763, 61-765 9 V DC 100 hr Alkaline Battery
Resistance0 to 999.9/1000 to 9999 Ohm
Safety RatingCAT IV 600 V AC, CAT III 1000 V AC
Type / Style760 Series With TRMS, Capacitance, Frequency
Voltage Accuracy6% 5 Digits, 1.5% 5 Digits, 1% 5 Digits AC, 1% 5 Digits, 1.5% 5 Digits DC
Documents
Applications
For variety of industrial and commercial environments
Included
(1) 9 VDC Battery, Operating Instructions, C-760 Nylon Carrying Case and TL-104 Test Leads with Large Alligator Clips
Features
- Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
- Low battery indicator
- Reads accurately on noisy electrical circuits
- 660 A True-RMS clamps for a variety of industrial and commercial environments
- Unique TightSight bottom display makes hard to reach measurements convenient
- Easy to read displays feature large numbers and green glowing backlight
- Cat IV rating for maximum safety, frequency, capacitance, peak, data hold, max/min
- High frequency rejection and EMI shielding features provide accurate voltage/frequency readings on non-sinusoidal wave forms such as adjustable speed drives
- Selectable audible and visual voltage alerts on AC/DC voltage functions, frequency via clamp head or test leads
- Audible continuity, selectable auto power off
- Tapered jaws with hook tip
- True RMS current and AC/DC voltage
- Peak hold, Max/min hold, Data hold
Specifications
- Safety Rating: CAT IV 600 VAC/CAT III 1000 VAC
