IDEAL 61-310

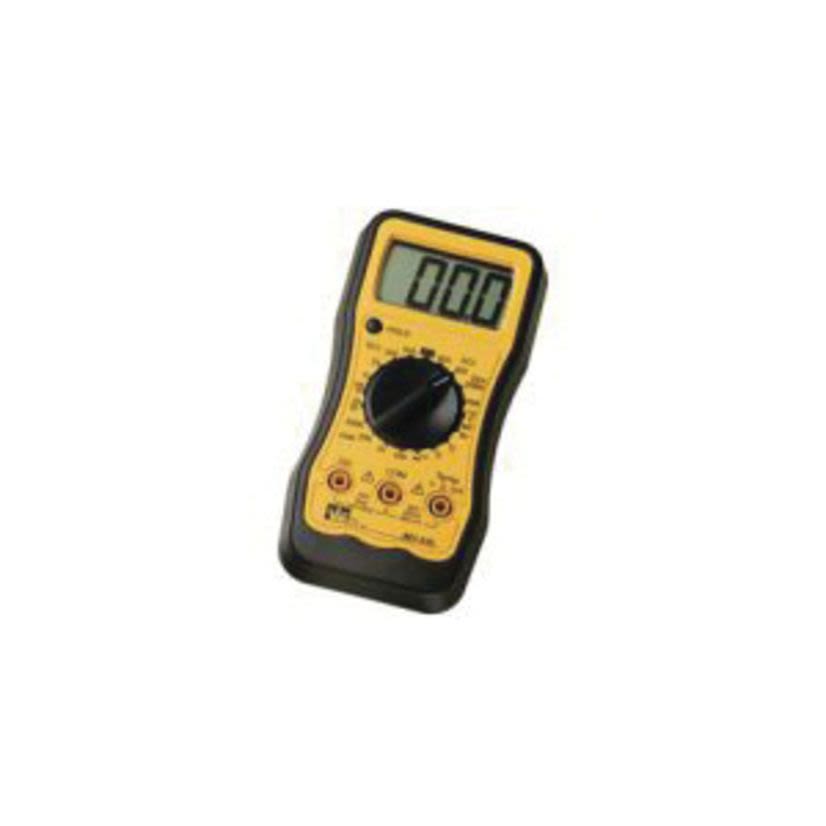

IDEAL 61-310 310 Digital Multimeter, 200 to 600 VAC, 200 mV to 600 VDC, 200 mA to 10 A DC, 200 to 20 MOhm, 3-1/2 Digit LCD Display
IDEAL 61-310
IDEAL 61-310 310 Digital Multimeter, 200 to 600 VAC, 200 mV to 600 VDC, 200 mA to 10 A DC, 200 to 20 MOhm, 3-1/2 Digit LCD DisplayNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
IDEAL Digital Multimeter, Series: 310, 200 to 600 VAC, 200 mV to 600 VDC, 200 mA to 10 A DC, 200 to 20 MOhm, Safety Rating: UL 61010B-1/UL 61010-B-2-031/EU 61010-1 EN61010-2-031/CAT IV 600V/CAT III 1000V, +/- 0.5% Reading + 2 Digits Accuracy, 100 mV to 1 V AC/100 uV to 1 V DC Resolution, 3-1/2 Digit LCD, 9 VDC Alkaline Battery, 1 mA at 2.8 VDC, 5.9 in H x 3 in W x 1.5 in D, -4 to 1382 deg F
Attributes
Warranty
Features
Specifications
Attributes
Accuracy+/- 0.5% Reading + 2 Digits
Amps200 mA to 10 A DC
Battery Type9 VDC Alkaline
Dimensions5.9 in H x 3 in W x 1.5 in D
Display Type3-1/2 Digit LCD
ManufacturerIdeal Industries
Resistance200 to 20 MOhm
Series310
Voltage200 to 600 VAC, 200 mV to 600 VDC
Warranty
2 Years Limited
Features
- Measures AC/DC voltage, DC current, resistance, audible continuity, temperature
- Features data hold, diode test
- Rubber boot
- Large numbers and symbols
- Overload protection on all ranges
- 600 V CAT II between V and COM input voltage, fused 250 mA at 250 V RMS input current
- 100 mV to 1 V for AC voltage, 100 uV to 1 V for DC voltage, 0.1 mA to 0.1 A DC current, 0.1 Ohm to 10 KOhm resistance, 1 deg C temperature resolution
Specifications
- Diode Test: 1 mA at 2.8 VDC
- Resolution: 100 mV to 1 VAC/100 uV to 1 VDC
- Safety Rating: UL 61010B-1/UL 61010-B-2-031/EU 61010-1 EN61010-2-031/CAT IV 600V/CAT III 1000V
