IDEAL 30-3628

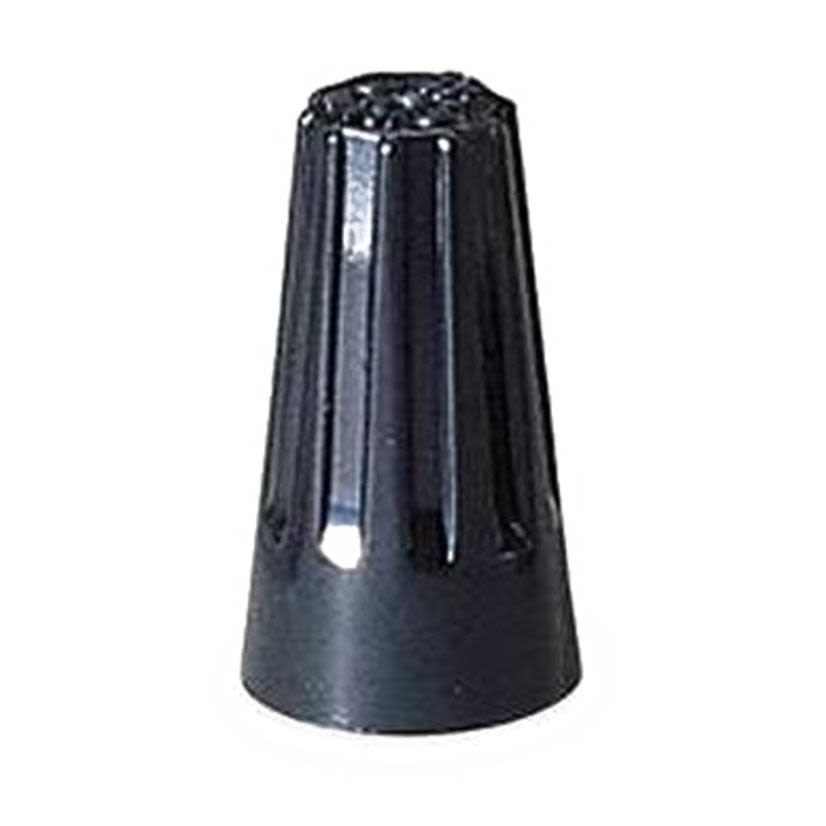

IDEAL® WIRE-NUT® 30-3628 74B® High Temperature Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid Copper/Stranded Wire, Thermoplastic Polyester
IDEAL 30-3628
IDEAL® WIRE-NUT® 30-3628 74B® High Temperature Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid Copper/Stranded Wire, Thermoplastic PolyesterNon-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #30-3628
Werner Part #3866528
UPC783250455409
Non-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #30-3628
Werner Part #3866528
UPC783250455409
Product Description
IDEAL® WIRE-NUT® Wire Connector, High Temperature, Series: 74B®, Twist-On, Fixed/Square Wire, Solid Copper/Stranded Wire, 22 to 14 AWG Wire, 300 VAC, 1/2 in Solid, 3/8 in Stranded Wrip Strip, 1 to 5 Conductors, Min 22 to 2 AWG, Max 16 to 3 AWG Combination Size, 302 deg F, Thermoplastic Polyester, Black, 45/64 in H x 25/64 in W
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUnited States
Dimensions45/64 in H x 25/64 in W
ManufacturerIdeal Industries
MaterialThermoplastic Polyester
Package TypeEACH
Series74B
Size of Wire22 to 14 AWG
Spring TypeFixed/Square Wire
Temperature Rating302 deg F
TypeHigh Temperature
Type / StyleHigh Temperature
Type of WireSolid/Stranded Copper
Voltage Rating300 VAC
Features
Welded one-piece spring/shell for added reliabilityBlack, thermoplastic shell specially designed to withstand the extreme heat build-up commonly found in high-wattage light fixtures and signsFixed, square wire spring creates its own threads-maintains a secure positive grip that will not relax over timeNo pre twisting required, positive grip design provides fast, easy installationDeep skirt helps protect against flash-overReusable for easy circuit changes and additionsFor tough environmental conditions
Specifications
1/2 in Solid, 3/8 in Stranded Wrip Strip, 1 to 5 Conductors, Min 22 to 2 AWG, Max 16 to 3 AWG Combination Size
