Hubbell RACO MCPCS8

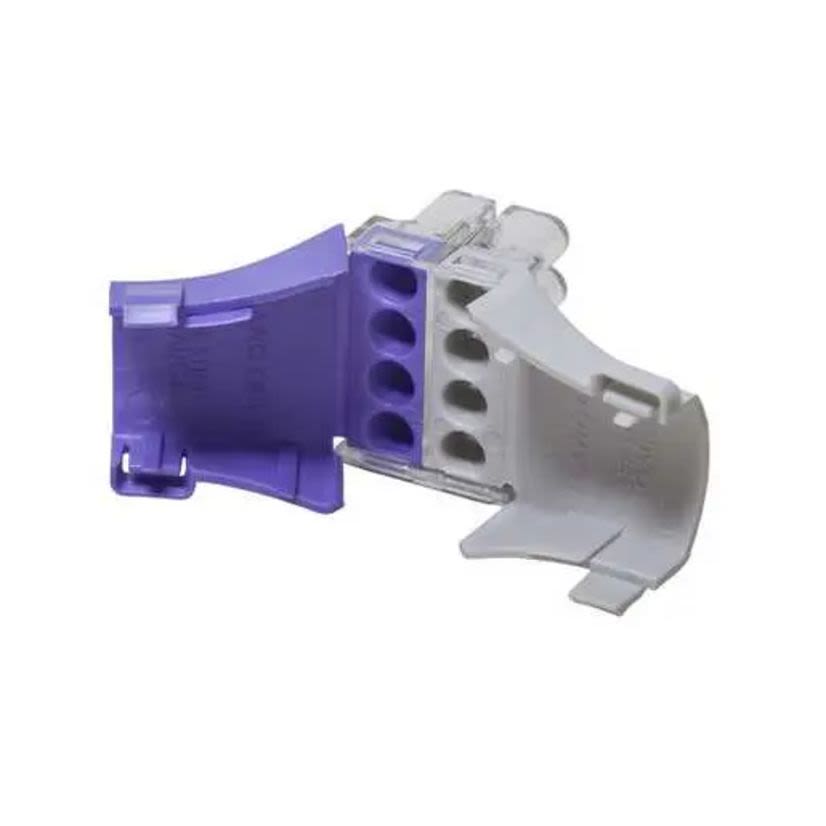

RACO Shield-IT MCPCS8 Wire Connector, 16 AWG Solid Copper Wire, Brass/Nylon/Polycarbonate/MCPCS8)
Hubbell RACO MCPCS8
RACO Shield-IT MCPCS8 Wire Connector, 16 AWG Solid Copper Wire, Brass/Nylon/PolycarbonateNon-stock product. Available to order - lead time may vary.
BrandHubbell RACO
MFG #MCPCS8
Werner Part #4296949
UPC050169994931
Non-stock product. Available to order - lead time may vary.
BrandHubbell RACO
MFG #MCPCS8
Werner Part #4296949
UPC050169994931
Product Description
RACO Shield-IT Wire Connector, Series: MC-PCS, Solid Copper Wire, 16 AWG Wire, 600 V, Specifications: 4-Wire, 8-Port, 105 deg C, Brass/Nylon/Polycarbonate, Clear, 1.424 in L x 1.023 in W x 0.769 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Specifications
Attributes
ColorClear
Country of OriginCN
Dimensions1.424 in L x 1.023 in W x 0.769 in H
ManufacturerHubbell
MaterialBrass/Nylon/Polycarbonate
SeriesMC-PCS
Size of Wire16 AWG
Temperature Rating105 deg C
Type of WireSolid Copper
Voltage Rating600 V
Documents
Applications
For splicing the double jacketed control/signal conductor pairs in MC-PCS cable, dimming control, low voltage lighting and smart building applications
Features
- Shield-It push-in wire connector is the first code compliant connector on the market for splicing the class 2 wires in MC-PCS cable inside the same electrical box as the power and-lighting conductors
- Code saver
- Reduce wiring time by 75%
- Easy to install wires no twisting, taping or crimping required
- Handy strip gauge ensures a perfect strip every time
- Simply strip wires, push-in and click to close shields
- Clear housing for easy visual inspection
Warranty
1 year
Specifications
4-Wire, 8-Port
