Honeywell 51781006

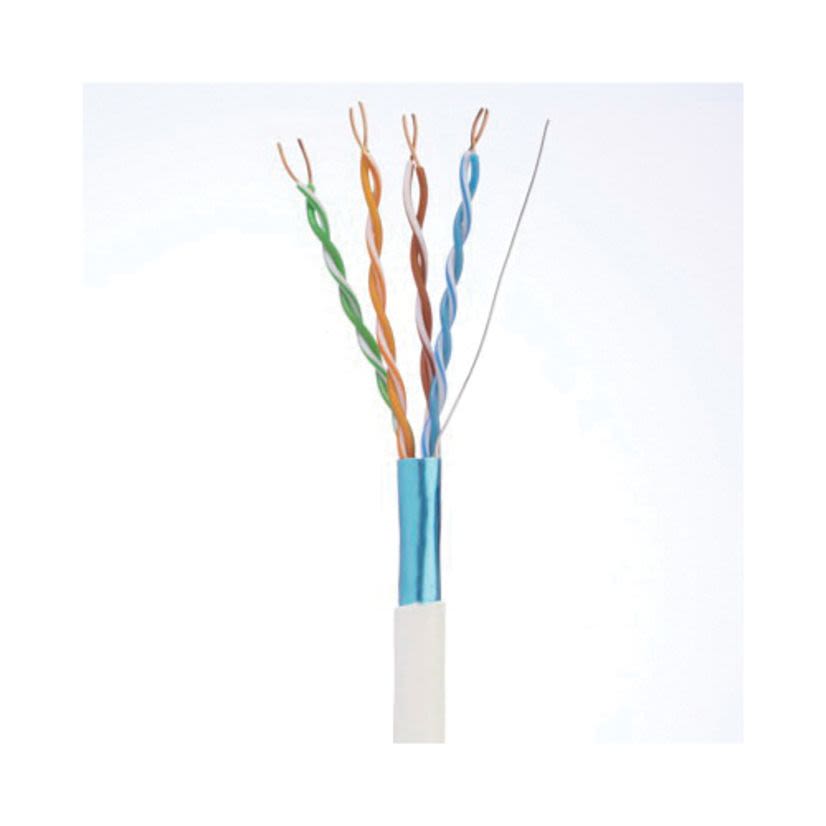

Honeywell Genesis® 51781006 Genesis® Type CMR Cat 5e/CL2R Shielded Communication Cable, 300 VAC, (4 Pair) 24 AWG Bare Solid Copper Conductor, 1000 ft L
Honeywell 51781006
Honeywell Genesis® 51781006 Genesis® Type CMR Cat 5e/CL2R Shielded Communication Cable, 300 VAC, (4 Pair) 24 AWG Bare Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Honeywell Genesis® Communication Cable, Type CMR Cat 5e/CL2R Shielded, Series: Genesis®, 300 VAC, 4 Pair Conductors, Bare Solid Copper Conductor, 24 AWG Conductor, 1/4 in OD, 1000 ft Length, 9.38 Ohm Resistance, HDPE/PP Insulation, PVC Jacket, Blue Jacket, -20 to 75 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size24 AWG
Conductor TypeBare Solid Copper
Insulation MaterialHDPE/PP
Jacket ColorBlue
Jacket MaterialPVC
Length1000 ft
ManufacturerHoneywell
Number of Conductors4 Pair
Outside Diameter1/4 in
Resistance9.38 Ohm
Type / StyleType CMR Cat 5e/CL2R Shielded
Voltage300 VAC
Documents
Applications
For general communication application
Features
5.6 nF/100 m capacitance570 ns/100 m propagation delay1000 to 0 (descending) footage markingCategory 5e and sweep tested to 350 MHzBrown and white/brown conductor color-code
Specifications
Standards/Approvals: RoHS Compliant|TIA/EIA-568|UL 1666 (or ETL) Listed
