Hubbell Wiring Device - Kellems 8300STR

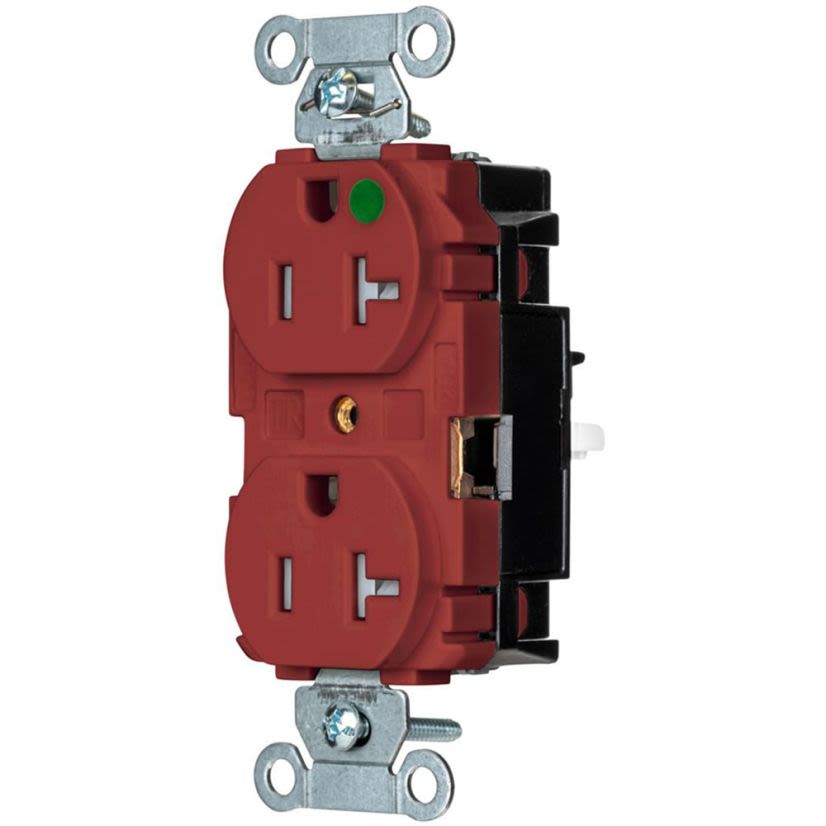

Hubbell Wiring Device-Kellems 8300STR EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Red
Hubbell Wiring Device - Kellems 8300STR
Hubbell Wiring Device-Kellems 8300STR EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, RedIn Stock: 15more info
|
BrandHubbell Wiring Device - Kellems
MFG #8300STR
Werner Part #4460457
UPC78358572694
In Stock: 15more info
|
BrandHubbell Wiring Device - Kellems
MFG #8300STR
Werner Part #4460457
UPC78358572694
Product Description
Hubbell Wiring Device-Kellems, 8300STR, Receptacle, Straight Blade, Series: EdgeConnect, 125 V, 20 A, 2 Pole, 3 Wires, 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Screwless Terminal, Thermoplastic, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorRed
Country of OriginCN
GradeHospital
ManufacturerHubbell
MaterialThermoplastic
Mounting TypeScrew Mount
NEMA Rating5-20R
Number of Poles2
Number of Wires3
PhaseSingle
SeriesEdgeConnect
Size of Wire#14 AWG to #10 AWG
Temperature Rating-40 to 75 deg C
Terminal TypeScrewless
TypeStraight Blade
Voltage Rating125 V
Documents
Applications
For Hubbell-PRO application
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
Specifications
- UL Listed to UL498 File No. E2186
- Certified to CSA 22.2, No. 42 File 285 Fed.
- Spec. W-C-596,NEMA® WD-6 Compliant
