HPS SH3T0225PB3K

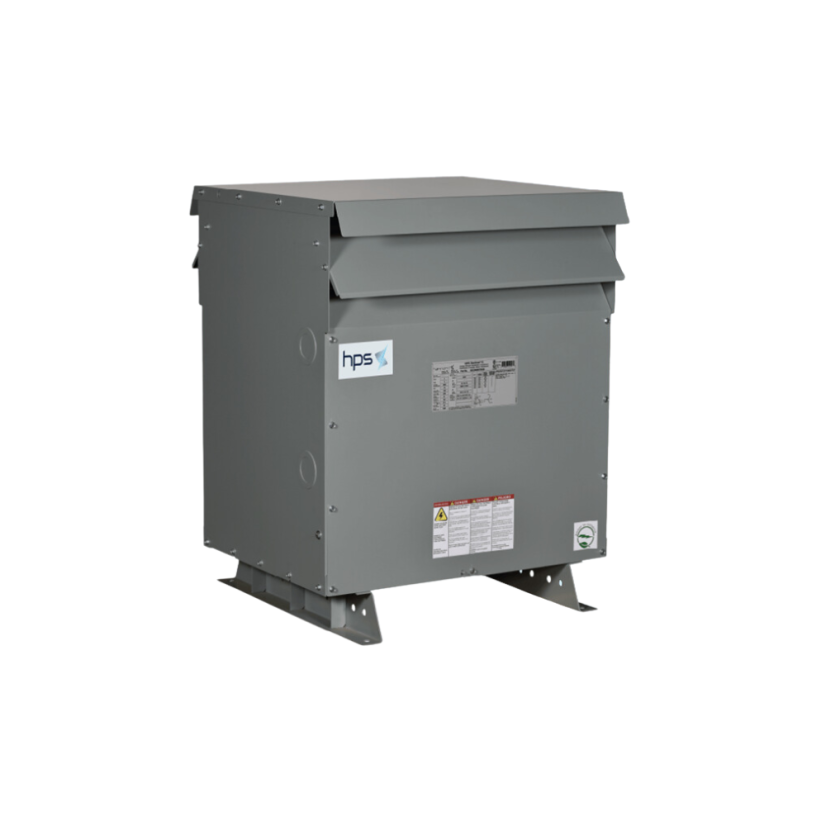

HPS SH3T0225PB3K Sentinel H Energy Efficient Shielded Harmonic Mitigating Transformer, 600 Delta V AC Primary, 208Y/120 VAC Secondary, 225 kVA Power Rating, 60 Hz, 3 Phase
HPS SH3T0225PB3K
HPS SH3T0225PB3K Sentinel H Energy Efficient Shielded Harmonic Mitigating Transformer, 600 Delta V AC Primary, 208Y/120 VAC Secondary, 225 kVA Power Rating, 60 Hz, 3 PhaseNon-stock product. Available to order - lead time may vary.
BrandHPS
MFG #SH3T0225PB3K
Werner Part #4471237
UPC803423135409
Non-stock product. Available to order - lead time may vary.
BrandHPS
MFG #SH3T0225PB3K
Werner Part #4471237
UPC803423135409
Product Description
HPS, SH3T0225PB3K, Harmonic Mitigating Transformer, Energy Efficient Shielded, Series: Sentinel H, 600 Delta V AC Primary, 208Y/120 VAC Secondary, 225 kVA Power, 60 Hz Frequency, 3 ph, Lug Connection, Floor Mounting, 220 deg C Insulation, NEMA 3R Enclosure, 86 to 104 deg F, 98.94 % Efficiency, 44-1/2 in H x 31-1/2 in W x 29-1/2 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeLug
Country of OriginCA|MX|US
Dimensions44-1/2 in H x 31-1/2 in W x 29-1/2 in D
Enclosure TypeNEMA 3R
FinishANSI 61 Grey, UL50
Frequency Rating60 Hz
Height44.5 in
Length29.5 in
ManufacturerHammond Power Solutions
MaterialCopper
Phase3
Power Rating225 kVA
SeriesSentinel H
Temperature Rating86 to 104 deg F
Voltage208Y/120 V
Width31.5 in
Documents
Applications
Indoor/Outdoor Applications
Warranty
10 year warranty
Features
- Superior to K-rated and conventional transformers in reducing voltage distortion and power losses due to current harmonics created by single-phase, non-linear loads
- Combining zero sequence flux cancellation with phase shifting treats 3rd, 5th, 7th, 9th, 15th, 17th and 19th, harmonics within its secondary windings
