HPS DM051JJ

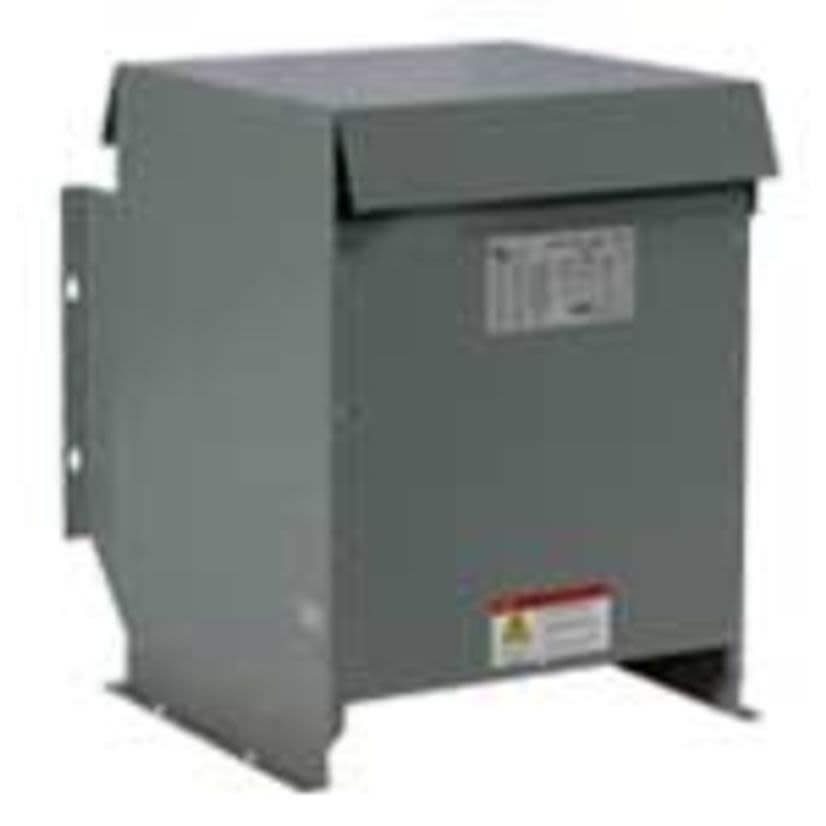

HPS DM051JJ 600V Class Three Phase Drive Isolation Transformer
HPS DM051JJ
HPS DM051JJ 600V Class Three Phase Drive Isolation TransformerIn Stock: 1more info
|
BrandHPS
MFG #DM051JJ
Werner Part #2018666
UPC803423003296
In Stock: 1more info
|
BrandHPS
MFG #DM051JJ
Werner Part #2018666
UPC803423003296
Product Description
Hammond DM051JJ HPS Drive Isolation Drive Isolation Transformer, 460 VAC Primary, 460Y VAC Secondary, 51 kVA, 60 Hz, 3 Phase, Lug/Pad, Floor/Wall Mount, 220 deg C, NH6-N3R Indoor/Outdoor, 30 deg C, 25 in L x 23.9 in W x 28.75 in H
Attributes
Documents
Applications
Features
Specifications
Attributes
Connection TypeLug/Pad
Country of OriginSri Lanka
Dimensions25 in L x 23.9 in W x 28.75 in H
Enclosure TypeNH6-N3R Indoor/Outdoor
Frequency Rating60 Hz
Height28.75 in
Insulation Type220 deg C
Length25 in
ManufacturerHammond Power Solutions
Mounting TypeFloor/Wall
Number of TapsST-20 compliant
Phase3 ph
Power Rating51 kVA
Primary Voltage460 VAC
Secondary Voltage460Y VAC
Temperature Rating30 deg C
Type / StyleTransformers > Drive Isolation
Width23.9 in
Documents
Applications
Variable Speed Drives.
Features
Designed to withstand overcurrent of 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds. Comes standard in an indoor/outdoor enclosure with a coil mounted thermal warning switch.
Specifications
KVA Rating: 51 kVA
