General Cable 7133819

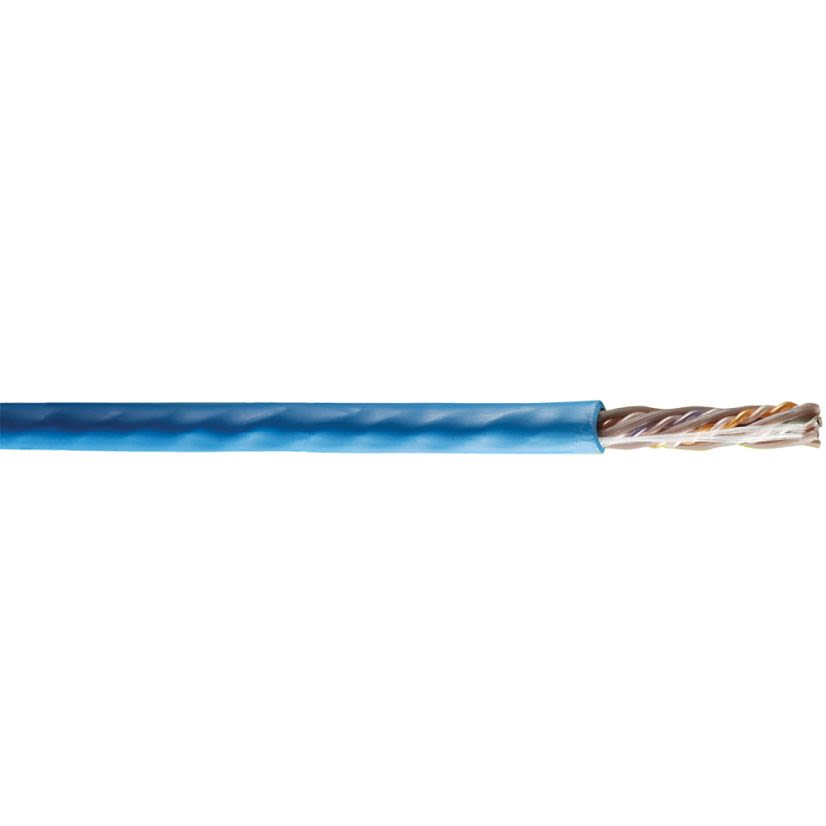

General Cable GenSPEED 10000 7133819 Type CMR UTP Cat 6a 10000 Riser Cable, Spool Packaging, 23 AWG Annealed Bare Solid Copper Conductor, 1000 ft L
General Cable 7133819
General Cable GenSPEED 10000 7133819 Type CMR UTP Cat 6a 10000 Riser Cable, Spool Packaging, 23 AWG Annealed Bare Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandGeneral Cable
MFG #7133819
Werner Part #4027979
UPC079407654437
Non-stock product. Available to order - lead time may vary.
BrandGeneral Cable
MFG #7133819
Werner Part #4027979
UPC079407654437
Product Description
General Cable GenSPEED 10000 10000 Riser Cable, Type CMR UTP Cat 6a, Spool Packaging, Annealed Bare Solid Copper Conductor, 23 AWG Conductor, 0.33 in OD, 1000 ft Length, PVC Insulation, PVC Jacket, Blue Jacket, -20 to 79 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeAnnealed Bare Solid Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerPrysmian
Outside Diameter0.33 in
Packaging TypeSpool
Temperature Rating-20 to 79 deg C
TypeType CMR UTP Cat 6a
Documents
Applications
IEEE 802.3: 10G BASE-T, 1000 BASE-T, 100 BASE-TX, 10 BASE-T, 1000 BASE-TX, ANSI/TIA 854: 1000 BASE-TX, 155 Mbps ATM, ANSI X3.263: 100 Mbps, IEEE 802.3af for DTE Power (PoE), IEEE 802.3at for PoE Plus
Features
- Extensive design development conducted to find the perfect blend of manufacturability
- Innovative T-top crossweb provides superior internal electrical characteristics by locking the pairs into a systematic orientation within the cable
- Superior flame and smoke characteristics achieved through innovative design and careful selection of materials with certified suppliers
- TRU-Mark print legend contains footage marking from 1000 to 0 ft
- AirEs jacket provides superior flexibility and maximum separation of pairs from cable to cable for consistent PSANEXT and PSAACRF performance
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS 2002/95/EC|ANSI/TIA 568-C.2|NEC/CEC Type CMR (UL 1666) for Non-Plenum|UL 444
