General Cable 7131903

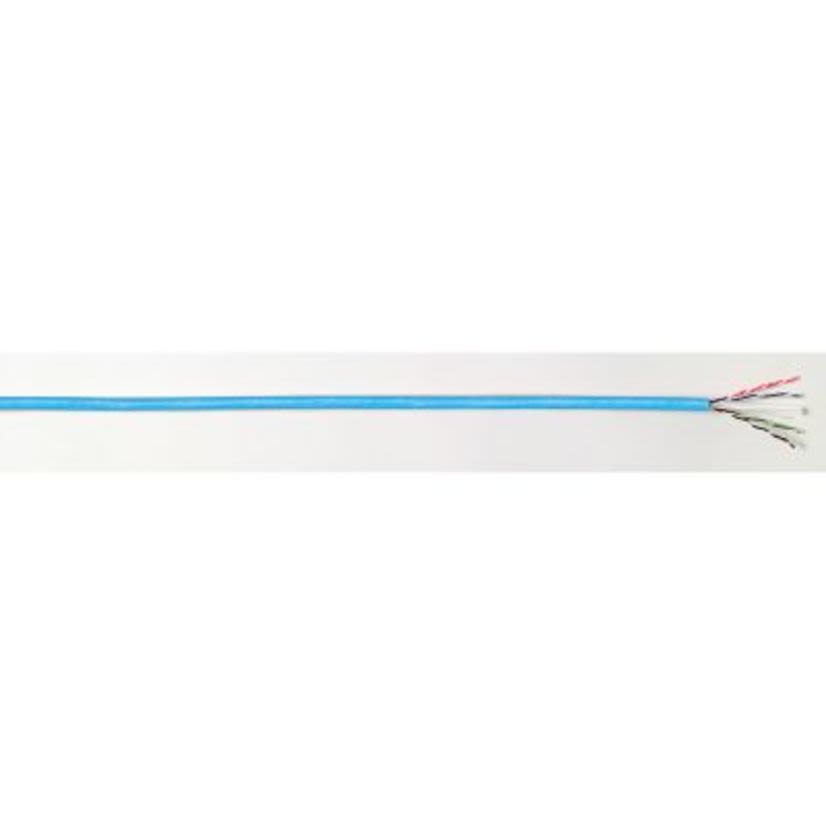

GenSPEED 6000 Enhanced 7131903 UTP CMP Cat 6 Plenum Cable, Pull-Pac II Packaging, (8) 23 AWG Bare Solid Copper Conductor, 1000 ft L
General Cable 7131903
GenSPEED 6000 Enhanced 7131903 UTP CMP Cat 6 Plenum Cable, Pull-Pac II Packaging, (8) 23 AWG Bare Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
GenSPEED 6000 Enhanced Cable, UTP CMP Cat 6 Plenum, Pull-Pac II Packaging, 8 Conductors, Bare Solid Copper Conductor, 23 AWG Conductor, 0.215 in OD, 1000 ft Length, 7.2 Ohm Resistance, Fluoropolymer/Polyolefin Insulation, PVC Jacket, Gray Jacket, -20 to 79 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeBare Solid Copper
Country of OriginUS
Insulation MaterialFluoropolymer/Polyolefin
Jacket ColorGray
Jacket MaterialPVC
ManufacturerPrysmian
Number of Conductors8
Outside Diameter0.215 in
Packaging TypePull-Pac II
Resistance7.2 Ohm
Temperature Rating-20 to 79 deg C
TypeUTP CMP Cat 6 Plenum
Documents
Applications
IEEE 802.3:1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T, ANSI/TIA 854:1000 BASE-TX, 155 Mp/s 1.2Gb/s ATM, ANSI X3.263:100 Mb/s, IEEE 802.3af for DTE Power (PoE), IEEE 802.3at for PoE Plus, CDDI, Token Ring, Digital Video, Broadband and Baseband Analog Video Applications
Warranty
1 Year Limited
Features
- Innovative crossweb design allowing for maximum pair separation, increasing key electrical performance parameters
- Performance guaranteed to 350 MHz
- Improved cable temperature rating (90 deg C plenum, 75 deg C riser) for greater protection against increased operating temperatures
- TRU-Mark print legend contains footage marking from 1000 to 0 ft
- Third party verified for guaranteed performance
- For IEEE 802.3, 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+, ANSI/TIA 854, 1000 BASE-TX
- Solid bare annealed copper conductor
- Applied longitudinally under jacket ripcord
- Low smoke, flame-retardant PVC jacket
- DC resistance unbalance is 4% (maximum), less than 1%(nominal) (individual pair)
- 45 ns maximum, 30 ns/100 m nominal delay skew
- 70% speed of light nominal velocity of propagation
- 9.38 Ohm maximum/7.2 Ohm nominal 100 m resistance
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS 2011/65/EU|UL 444|ETL Listed|ANSI/TIA 568-C.2|NEC/CEC Type CMP (NFPA 262)|NEC/CEC Type CMR (UL 1666)|ANSI/TIA 862|ICEA S-116-732|ICEA S-102-700|ISO/IEC 11801 Ed. 2.0 (Class E)
