General Cable 2131505.99

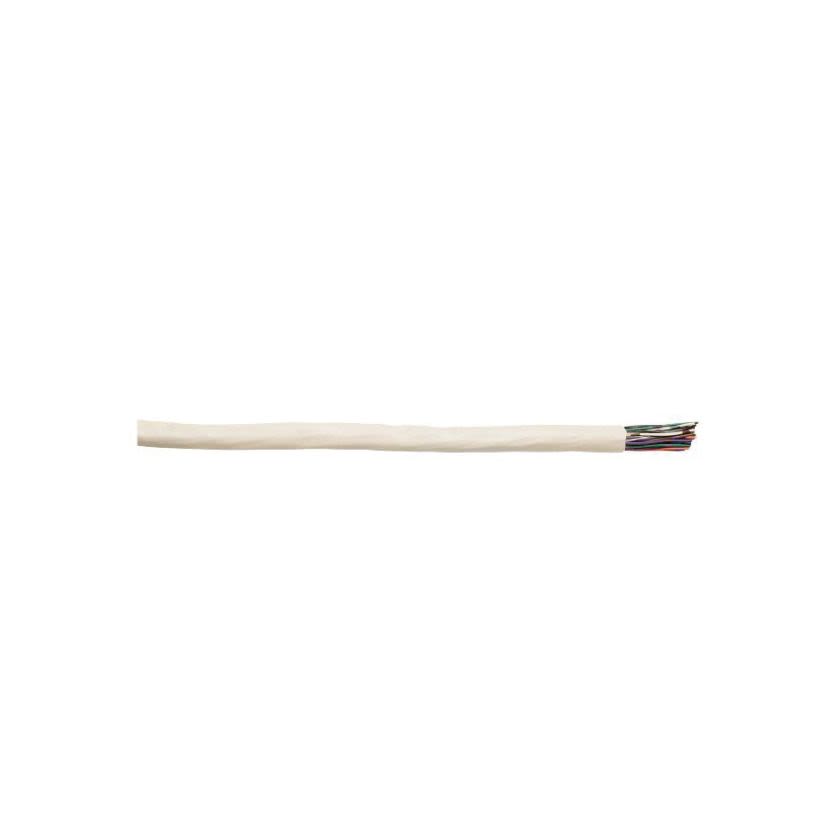

General Cable 2131505.99 Cat 3 Plenum Cable, (25 Pairs) 24 AWG Annealed Bare Solid Copper Conductor, 5000 ft L
General Cable 2131505.99
General Cable 2131505.99 Cat 3 Plenum Cable, (25 Pairs) 24 AWG Annealed Bare Solid Copper Conductor, 5000 ft LIn Stock: 1435more info
|
BrandGeneral Cable
MFG #2131505.99
Werner Part #3970720
UPC079407504275
In Stock: 1435more info
|
BrandGeneral Cable
MFG #2131505.99
Werner Part #3970720
UPC079407504275
Product Description
General Cable Cable, Cat 3 Plenum, 25 Pairs Conductors, Annealed Bare Solid Copper Conductor, 24 AWG Conductor, 0.42 in OD, 5000 ft Length, 9.38 Ohm Resistance, PVC Coated Insulation, PVC Coated Jacket, White Jacket, -20 to 75 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size24 AWG
Conductor TypeAnnealed Bare Solid Copper
Country of OriginUS
Insulation MaterialPVC Coated
Jacket ColorWhite
Jacket MaterialPVC Coated
ManufacturerPrysmian
Number of Conductors25 Pairs
Outside Diameter0.42 in
Resistance9.38 Ohm
Temperature Rating-20 to 75 deg C
TypeCat 3 Plenum
Applications
IEEE 802.3 10 BASE-T, IEEE 802.12, 100 BaseVG, Token Ring, ATM and Voice
Warranty
1 Year Limited
Features
- Flexguard flame-retardant PVC jacket
- Applied longitudinally under jacket ripcord
- Sequential footage marked to facilitate installation
- For IEEE 802.3, 10 BASE-T, IEEE 802.12, 100 BaseVG
- 17 pF at 1 kHz mutual capacitance
- Structural return loss is 12 dB (min), 1 to 10 MHz 12-10 log (f/10) dB (min), 10 to 16 MHz frequency
Specifications
Standards/Approvals: UL 444, ANSI/TIA 568-C.2, NEC/CEC Type CMP (NFPA 262), ICEA S-90-661, RoHS 2011/65/EU Compliant
