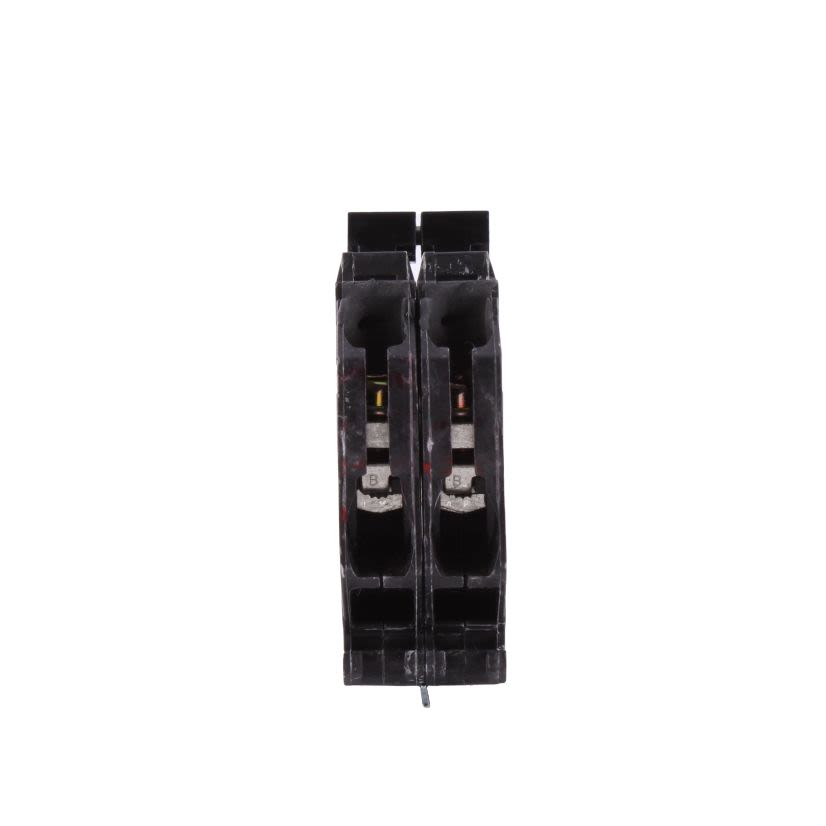

General Electric THQP220
**DISCONTINUED** GE Q-Line THQP220 Type THQP Compact Molded Case Circuit Breaker, 240 VAC, 20 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
General Electric THQP220
**DISCONTINUED** GE Q-Line THQP220 Type THQP Compact Molded Case Circuit Breaker, 240 VAC, 20 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
**DISCONTINUED** GE Q-Line Molded Case Circuit Breaker, Type THQP Compact, 240 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, LI/Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 ph, Pivot/Toggle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 3-9/32 in H x 1 in W x 2-3/8 in D Dimensions, Plastic
Attributes
Documents
Features
Attributes
Actuator TypePivot/Toggle
Connection TypeLoad Lug
Dimensions3-9/32 in H x 1 in W x 2-3/8 in D
FrameQ-Line
Frequency Rating50/60 Hz
Interrupt Rating10 kA
ManufacturerGeneral Electric
MaterialSteel
Mounting TypePlug-In
Number of Poles2/1/2003 12:00:00 AM
Phase1
Size of Wire14 to 8 AWG, 12 to 8 AWG
Suitable For Use WithBQD, CQD NGG and NGB Molded Case Circuit Breaker
Trip TypeLI/Non-Interchangeable Thermal Magnetic
Type / StyleType THQP Compact
Voltage240 VAC
Features
Molded case is molded from high mechanical and high dielectric strength engineered plasticTrip indication is shown by handle position midway between on and off, to reset the trip mechanism, move the handle to extreme off, then to on positionQuick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into positionTrip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on positionVERIFIERā¢ "Twist-to-Trip" and ''Push-to-Trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handleCommon trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operatesSilver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact lifeArc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcsUL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring10 kA at 120 VAC, 10 kA at 120/240 VAC interrupt rating
