General Electric THN3363

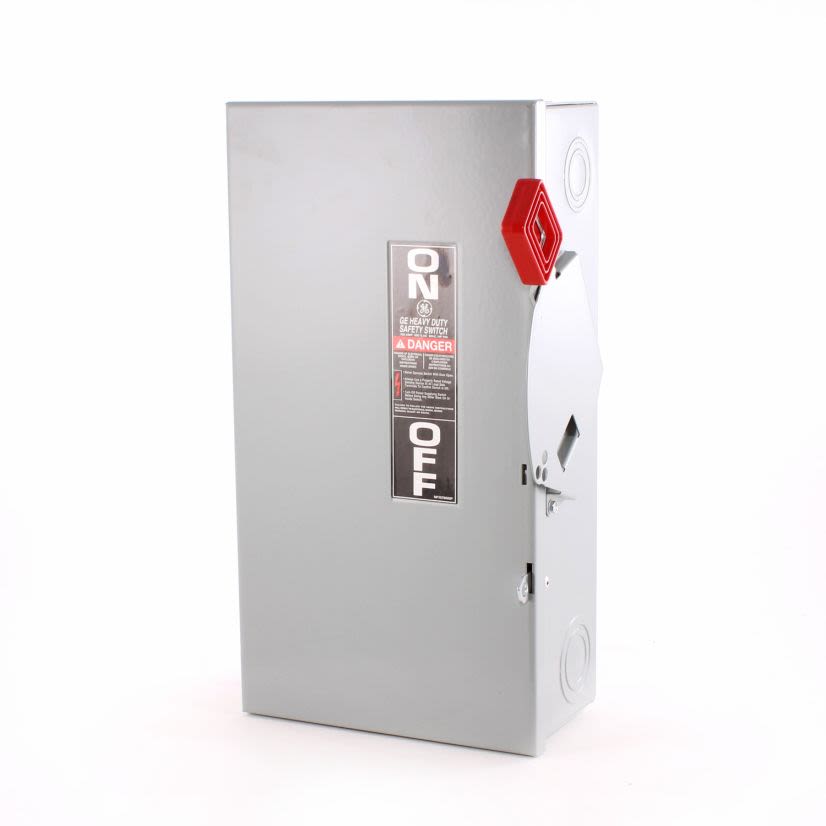

GE Spec-Setter™ THN3363 Heavy Duty Non-Fusible Safety Switch, 600 VAC, 100 A, 100 hp, 3 Poles
General Electric THN3363
GE Spec-Setter™ THN3363 Heavy Duty Non-Fusible Safety Switch, 600 VAC, 100 A, 100 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #THN3363
Werner Part #32208
UPC783164011340
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #THN3363
Werner Part #32208
UPC783164011340
Product Description
GE Spec-Setter™ Safety Switch, Heavy Duty Non-Fusible, Series: THN, 600 VAC, 100 A, 100 hp, 3, 50/60 Hz, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 1, Surface Mount, 60/75 deg C, 17.6 in H x 9.3 in W x 4.8 in D
Attributes
Documents
Features
Attributes
Actuator TypeHandle
Connection TypePlug-On
Country of OriginUnited States
Dimensions4-1/2 in L x 2-3/4 in W x 2 in H
Enclosure TypeNEMA 1/3R
Frequency Rating50/60 Hz
Horsepower100 hp
Interrupt Rating10 kA
ManufacturerGeneral Electric
Mounting TypeSurface
Number of Poles2
Number of Wires3
Phase3
SeriesTHN
Short Circuit Current Rating200 kA
Size of Wire14 to 4 AWG
Temperature Rating60 to 75 deg C
Trip Range5
Trip TypeCommon
TypeType CH Self-Test
Type / StyleHeavy Duty Non-Fusible
Voltage600 VAC
Features
Donut handle ideal for hook stick operation and accepts 3 padlocks in the off positionDirect drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indicationSelf-leveling, 3-point mounting systemCoin-proof, defeatable interlockVisible confirmation of plated blade contact positionsSpring reinforced fuse clips assure reliable contact for cool operationSuitable for class H, K, J or R fuses, where applicableWith class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical AUL listed as service entrance equipment when installed in accordance with the national electric codeSwitches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
