General Electric TH3364J

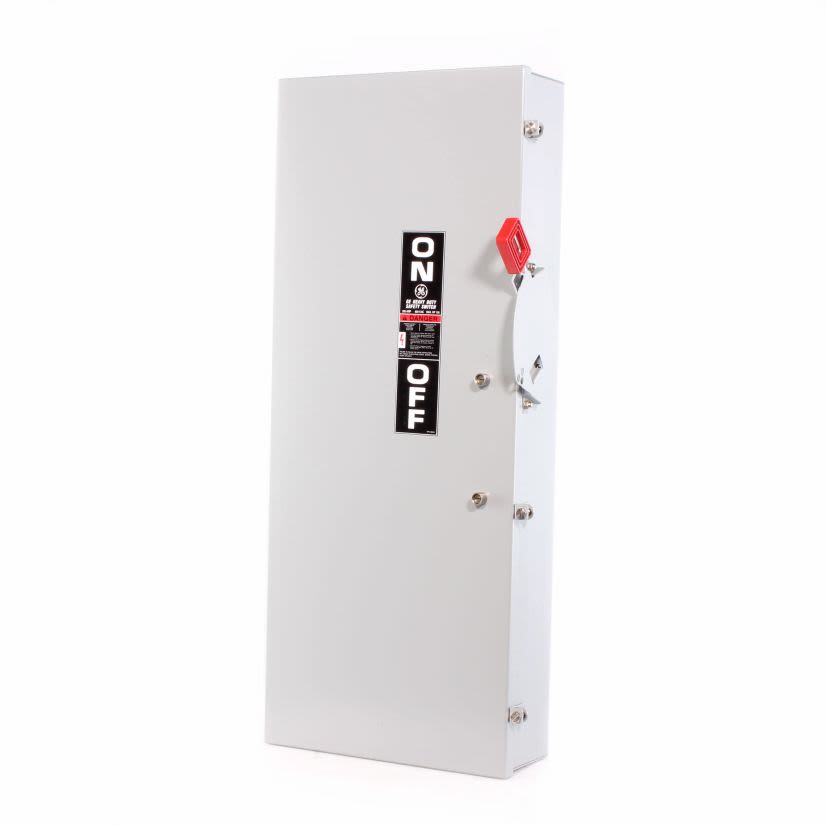

GE Spec-Setter™ TH3364J Fused Heavy Duty Safety Switch, 600 VAC, 200 A, 60 hp, 3 Poles
General Electric TH3364J
GE Spec-Setter™ TH3364J Fused Heavy Duty Safety Switch, 600 VAC, 200 A, 60 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
GE Spec-Setter™ Safety Switch, Fused Heavy Duty, 600 VAC, 200 A, 60 hp, 3 Phase, 50/60 Hz, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, Handle Actuator, Class H/J/K/R Insulation, NEMA 5/12, 3-Point/Self-Leveling Mount, Line/Load Lug Terminal, 60 to 75 deg C, 35.1 in H x 15.1 in W x 10.1 in D, Stainless Steel, Galvanized/Powder Coated
Attributes
Documents
Features
Attributes
Actuator TypeHandle
Country of OriginUnited States
Dimensions3.8 x 3.2 x 4.7 in
Enclosure TypeNEMA 5/12
FinishGalvanized/Powder Coated
Frequency Rating50/60 Hz
Horsepower60 hp
Insulation TypeClass H/J/K/R
Interrupt Rating22 kA
ManufacturerGeneral Electric
MaterialStainless Steel
Mounting TypeBolt-On
Number of Poles3
Number of Wires3
Phase3 ph
Short Circuit Current Rating200 kA
Size of Wire14 to 4 AWG
Temperature Rating40 deg C
Terminal TypeLine/Load Lug
Trip TypeNon-Interchangeable/Thermal Magnetic
TypeType QBHW
Type / StyleFused Heavy Duty
Voltage600 VAC
Features
Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearanceCoin-proof, defeatable dual interlocks meet all safety inspection requirementsWide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy3-point mounting pattern speeds installation and simplifies ganging in close quartersClear line shield allows visual verification of blade position while guarding against accidental contact with live partsPlated blades provide visible confirmation of contact positionDirect drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch lifeSpring reinforced fuse clips assure reliable contact for cool operationSuitable for class H, K, J or R fuses25 hp at 480 VAC standard fuse, 50 hp at 480 VAC standard fuse, 50 hp at 480 VAC time delay, 125 hp at 480 VAC time delay, 30 hp at 600 VAC standard fuse, 60 hp at 600 VAC standard fuse, 50 hp at 600 VAC time delay, 150 hp at 600 VAC time delay, 40 hp at 250 VDC horsepower rating
