General Electric TGN3321R

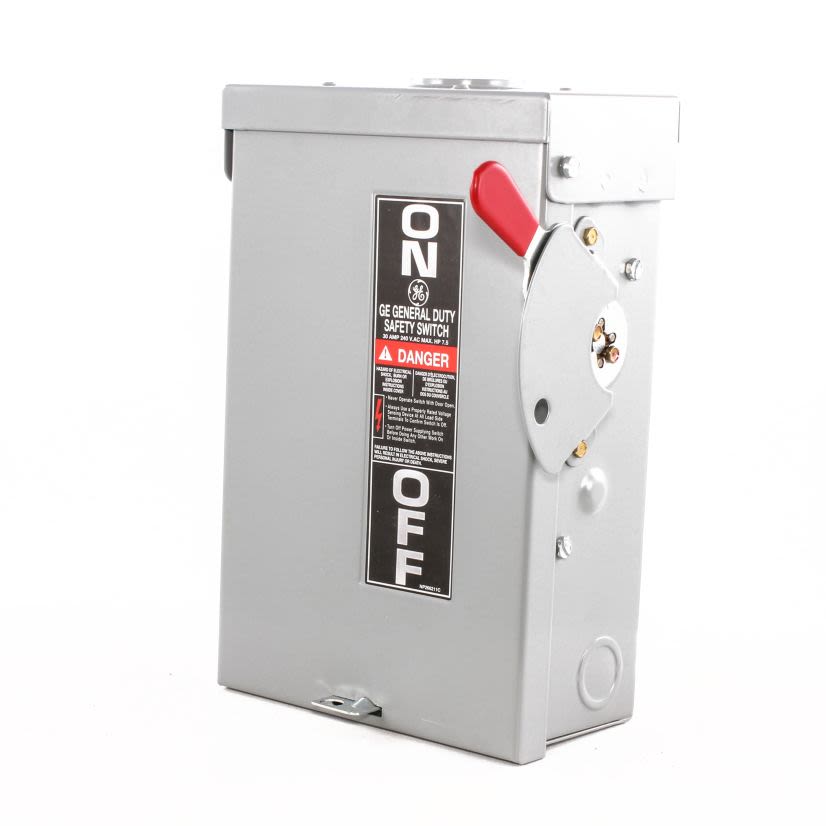

GE Spec-Setter™ TGN3321R General Duty Non-Fusible Safety Switch, 240 VAC, 30 A, 3 hp Standard Fuse/7-1/2 hp Time Delay, 3 Poles
General Electric TGN3321R
GE Spec-Setter™ TGN3321R General Duty Non-Fusible Safety Switch, 240 VAC, 30 A, 3 hp Standard Fuse/7-1/2 hp Time Delay, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
GE Spec-Setter™ Safety Switch, General Duty Non-Fusible, Series: TGN, 240 VAC, 30 A, 3 hp Standard Fuse/7-1/2 hp Time Delay, 1/3, 50/60 Hz, 3 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R, Surface Mount, 60/75 deg C, 9.78 in H x 6.4 in W x 3.3 in D, Steel
Attributes
Documents
Features
Attributes
Actuator TypeHandle
Breaker TypeBAB
Country of OriginUnited States
Enclosure TypeNEMA 3R
Frequency Rating50/60 Hz
Horsepower3 hp Standard Fuse/7-1/2 hp Time Delay
Interrupt Rating10 kA
ManufacturerGE
Number of Poles3
Number of Wires3
Phase1/3
SeriesPRL1A
Short Circuit Current Rating100 kA
Type1-Phase 42-Circuit
Type / StyleGeneral Duty Non-Fusible
Voltage240 VAC
Wiring Configuration3-Wire
Features
Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indicationSelf-leveling, 3-point mounting systemIntegral cover interlockVisible confirmation of plated blade contact positionsSpring reinforced fuse clips assure reliable contact for cool operationSuitable for class H, K, J or R fuses, where applicableUL listed short circuit rating is 10000 rms symmetrical amps standardWith class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical AUL listed as service entrance equipment when installed in accordance with the national electric code
