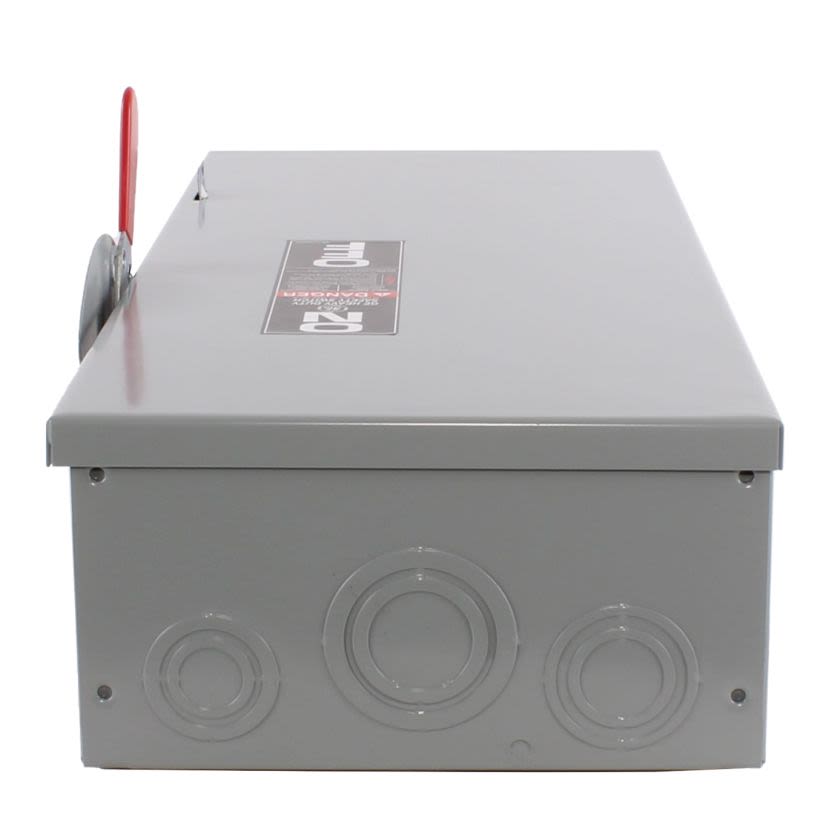

General Electric TG4323
GE Spec-Setter™ TG4323 TG Series Fusible General Duty Safety Switch, 240 VAC, 100 A, 7-1/2 hp Standard Fuse/15 hp Time Delay, 3 Poles
General Electric TG4323
GE Spec-Setter™ TG4323 TG Series Fusible General Duty Safety Switch, 240 VAC, 100 A, 7-1/2 hp Standard Fuse/15 hp Time Delay, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TG4323
Werner Part #32115
UPC783164008678
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TG4323
Werner Part #32115
UPC783164008678
Product Description
GE Spec-Setter™ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 100 A, 7-1/2 hp Standard Fuse/15 hp Time Delay, 1, 50/60 Hz, 3 Pole, 4 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 1, Surface Mount, 60/75 deg C, 21.33 in H x 9.4 in W x 4.9 in D, Steel
Attributes
Documents
Features
Attributes
Actuator TypeHandle
Country of OriginUnited States
Dimensions4.06 x 4.13 x 4.13 in
Enclosure TypeNEMA 1
FrameJ
Frequency Rating50/60 Hz
Horsepower7-1/2 hp Standard Fuse/15 hp Time Delay
Interrupt Rating35/65 kA
ManufacturerGE
Number of Poles3
Number of Wires4
Phase1
SeriesC Series
Short Circuit Current Rating100 kA
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic
TypeType JDB
Type / StyleFusible General Duty
Voltage240 VAC
Features
Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indicationSelf-leveling, 3-point mounting systemIntegral cover interlockVisible confirmation of plated blade contact positionsSpring reinforced fuse clips assure reliable contact for cool operationSuitable for class H, K, J or R fuses, where applicableUL listed short circuit rating is 10000 rms symmetrical amps standardWith class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical AUL listed as service entrance equipment when installed in accordance with the national electric code
