General Electric TG3224R

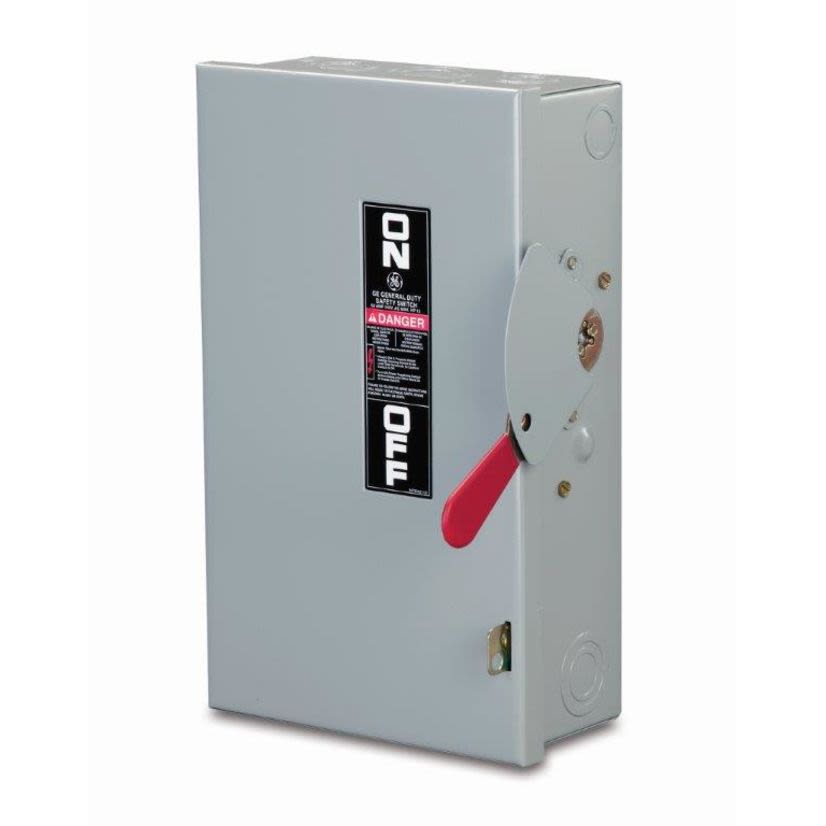

GE Spec-Setter™ TG3224R TG Series Fusible General Duty Safety Switch, 240 VAC, 200 A, 15 hp Standard Fuse/15 hp Time Delay, 2 Poles
GE Spec-Setter™ TG3224R TG Series Fusible General Duty Safety Switch, 240 VAC, 200 A, 15 hp Standard Fuse/15 hp Time Delay, 2 Poles

General Electric TG3224R

GE Spec-Setter™ TG3224R TG Series Fusible General Duty Safety Switch, 240 VAC, 200 A, 15 hp Standard Fuse/15 hp Time Delay, 2 Poles
Non-stock product. Available to order - lead time may vary.

BrandGeneral Electric

MFG #TG3224R

Werner Part #32107

UPC783164008548

Non-stock product. Available to order - lead time may vary.

BrandGeneral Electric

MFG #TG3224R

Werner Part #32107

UPC783164008548

Product Description

GE Spec-Setter™ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 200 A, 15 hp Standard Fuse/15 hp Time Delay, 1, 50/60 Hz, 2 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R, Surface Mount, 60/75 deg C, 28.78 in H x 13.4 in W x 5.3 in D, Steel
Attributes
Actuator TypeHandle
Connection TypeLoad
Country of OriginUnited States
Dimensions3.38 x 5.5 x 6 in
Enclosure TypeNEMA 3R
FrameF
Frequency Rating50/60 Hz
Horsepower15 hp Standard Fuse/15 hp Time Delay
Interrupt Rating42 kA
ManufacturerGE
MaterialGlass Polyester
Mounting TypeSurface
Number of Poles4
Number of Wires3
Phase1
SeriesC Series
Short Circuit Current Rating100 kA
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic
TypeType HFDDC
Type / StyleFusible General Duty
Voltage240 VAC
