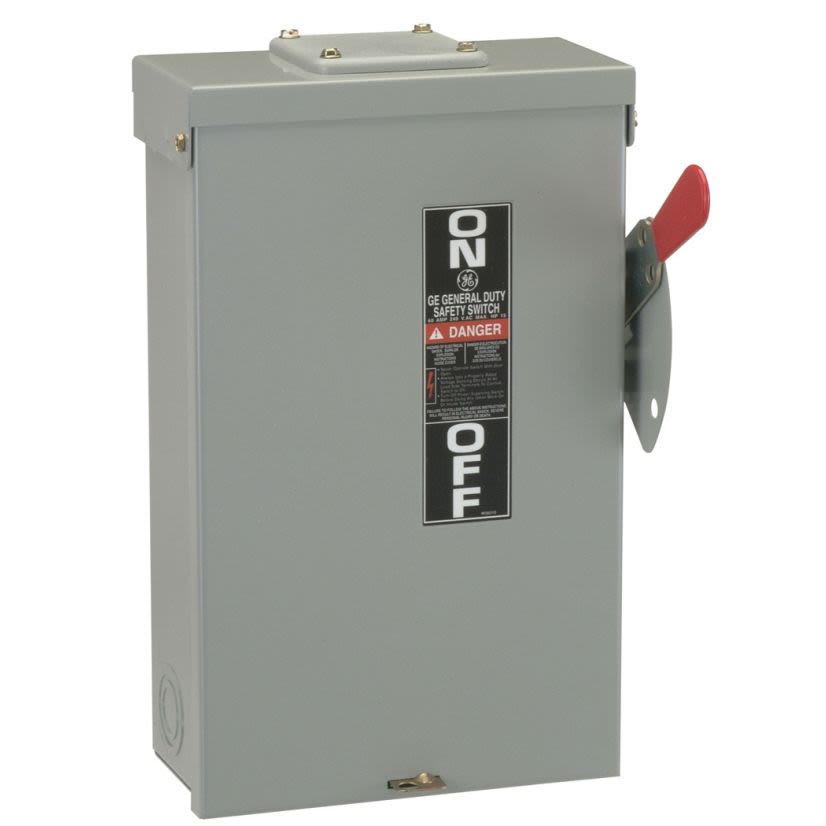

General Electric TG3221R
GE Spec-Setter™ TG3221R TG Series Fusible General Duty Safety Switch, 240 VAC, 30 A, 1.5 hp Standard Fuse/3 hp Time Delay, 2 Poles
General Electric TG3221R
GE Spec-Setter™ TG3221R TG Series Fusible General Duty Safety Switch, 240 VAC, 30 A, 1.5 hp Standard Fuse/3 hp Time Delay, 2 PolesNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TG3221R
Werner Part #32101
UPC783164008487
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TG3221R
Werner Part #32101
UPC783164008487
Product Description
GE Spec-Setter™ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 30 A, 1.5 hp Standard Fuse/3 hp Time Delay, 1, 50/60 Hz, 2 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R, Surface Mount, 60/75 deg C, 9.78 in H x 6.4 in W x 3.3 in D, Steel
Attributes
Documents
Features
Attributes
Actuator TypeHandle
Country of OriginUnited States
Dimensions10.1 in W x 9.8 in D x 21.3 in H
Enclosure TypeNEMA 1
FinishHot Dipped Galvanized/Powder Coated
Frequency Rating50/60 Hz
Horsepower7/5 hp
Insulation TypeClass H/J/K/R
ManufacturerGE
MaterialStainless Steel
Mounting Type3-Point/Self-Leveling
Number of Poles2
Number of Wires3
Phase1 ph
SeriesTG Series
Short Circuit Current Rating200 kA
Temperature Rating60 to 75 deg C
Terminal TypeLine/Load Lug
TypeFused Heavy Duty
Type / StyleFusible General Duty
Voltage240 VAC
Features
Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indicationSelf-leveling, 3-point mounting systemIntegral cover interlockVisible confirmation of plated blade contact positionsSpring reinforced fuse clips assure reliable contact for cool operationSuitable for class H, K, J or R fuses, where applicableUL listed short circuit rating is 10000 rms symmetrical amps standardWith class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical AUL listed as service entrance equipment when installed in accordance with the national electric code
