General Electric SEDA36AT0100

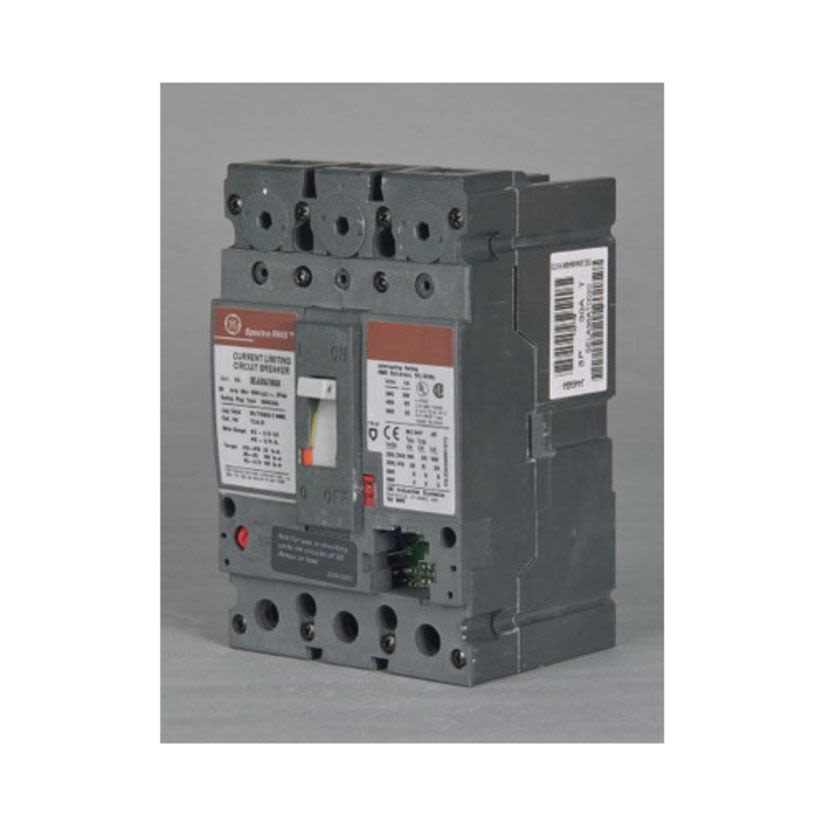

GE Spectra RMS™ SEDA36AT0100 Type SED Standard Continuous Load Current Limiting Molded Case Circuit Breaker With Tracking Short Time, 600 VAC, 100 A, 14 kA Interrupt, 3 Poles, Electronic LSI/Interchangeable Trip
General Electric SEDA36AT0100
GE Spectra RMS™ SEDA36AT0100 Type SED Standard Continuous Load Current Limiting Molded Case Circuit Breaker With Tracking Short Time, 600 VAC, 100 A, 14 kA Interrupt, 3 Poles, Electronic LSI/Interchangeable TripNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #SEDA36AT0100
Werner Part #31957
UPC783164211412
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #SEDA36AT0100
Werner Part #31957
UPC783164211412
Product Description
GE Spectra RMS™ Molded Case Circuit Breaker, Type SED Standard Continuous Load Current Limiting, 600 VAC, 100 A, 50/60 Hz Frequency, 14 kA Interrupt, SE150 Frame, Electronic LSI/Interchangeable Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, 12 to 3/0 AWG Wire, NEMA 1/4/12/4X/3R Enclosure, Panel Mounting, 104 deg F, 6.31 in H x 4.12 in W x 3.38 in D Dimensions
Attributes
Documents
Features
Attributes
Actuator TypePivot/Toggle Handle
Dimensions25-1/4 in H x 62-5/16 in W x 6 in D
Enclosure TypeNEMA 3R
FrameSE150
Frequency Rating60 Hz
Interrupt Rating14 kA
ManufacturerGeneral Electric
Mounting TypeSurface
Number of Poles3
Phase3 ph
Size of Wire12 to 3/0 AWG
Terminal TypeStud/Lay-In
Trip TypeElectronic LSI/Interchangeable
TypeRingless
Type / StyleType SED Standard Continuous Load Current Limiting
Voltage600 VAC
Documents
Features
Snap-in lugs (in E and F frames), lug installation requires no disassembly or removal of coverAn industry first, common internal accessories, regardless of frame rating, you only have to stock one type of accessory, reduces inventoryUnique, short time function tracks the adjustable instantaneous setting for greater motor and transformer protection, standard for all framesAccessory leads can be either right or left exit and thanks to the side and rear channels, no added space is required for lead exitHigher IC ratings, ratings to 100 kA at 480 VAC without fuses and without changing from traditional GE breakersDigital rms trip system standard, true rms sensing means accurate response to the high harmonic content current waveforms produced by SCR drives, welders, arc furnaces, computer power supplies and discharge type lighting, all without nuisance tripping(1) 12 to 3/0 AWG copper, (1) 12 to 3/0 AWG aluminum wire range14 kA at 600 VAC, 18 kA at 120 VAC, 18 kA at 120/240 VAC, 18 kA at 240 VAC, 18 kA at 277 VAC, 18 kA at 480 VAC interrupt ratingWithout lug
