FLUKE I30

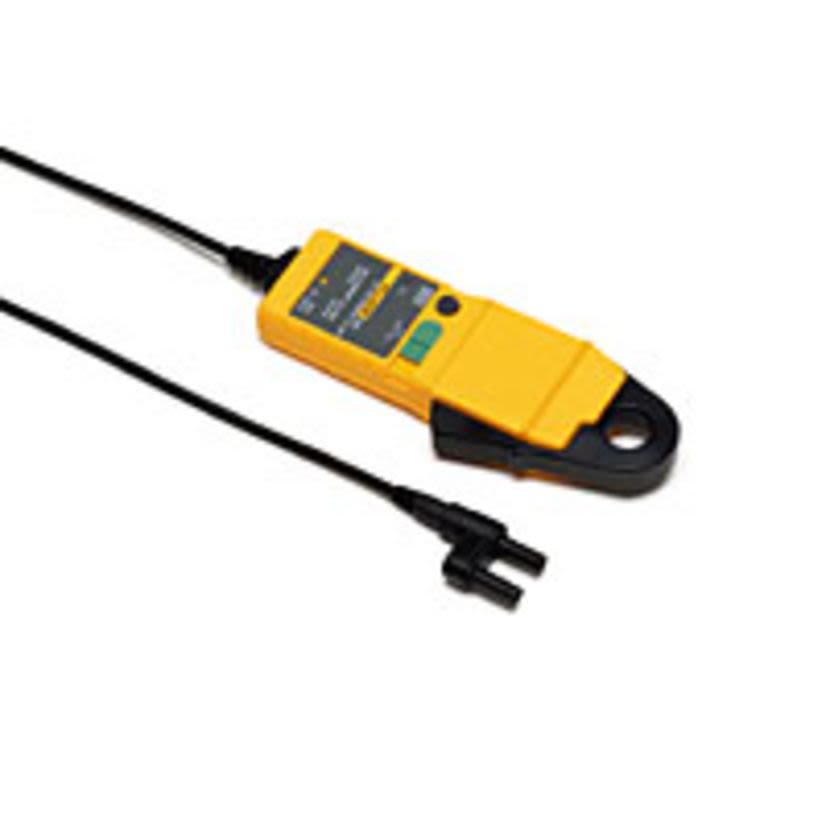

Fluke I30 AC/DC Current Clamp, 30 A, 300 V AC/DC, 20 kHz
FLUKE I30
Fluke I30 AC/DC Current Clamp, 30 A, 300 V AC/DC, 20 kHzNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Fluke Current Clamp, AC/DC, 30 A, 300 V AC/DC Electrical Rating, 20 kHz Frequency, +/-1% +/-2 mA at 25 deg C AC Current Accuracy, 9 VDC Alkaline Battery Power Source, 0 to 50 deg C Operating, 3/4 in Dia x 8.94 in L x 2.8 in W x 1 in H Dimensions, Hard Plastic, Black/Brown/Yellow
Attributes
Documents
Applications
Features
Attributes
AC Current Accuracy+/-1% +/-2 mA at 25 deg C
ColorBlack/Brown/Yellow
Dimensions3/4 in Dia x 8.94 in L x 2.8 in W x 1 in H
Electrical Ratings30 A, 300 V AC/DC
Frequency Rating20 kHz
ManufacturerFluke
MaterialHard Plastic
Operating Temperature0 to 50 deg C
Power Source9 V DC Alkaline Battery
TypeAC/DC
Type / StyleAC/DC
Documents
Applications
For use to measure current
Features
- 30 mA to 30 a DC, 30 mA to 20 A AC RMS specified current range
- 5 mA to 30 a DC, 30 mA to 20 A AC RMS usable current range
- 1.4 in crest factor
- 100 mV/A output sensitivity
- +/-1 mA resolution
- >10 kOhm and <=100 pF load impedance
- +/-1% relative to center reading conductor position sensitivity
- DC to 20 kHz (-0.5 dB) frequency
- +/-0.01% of reading/deg C temperature coefficient
- 9 VDC alkaline, MN1604/PP3, 30 hours low battery indicator power supply
- 300 VAC RMS or DC working voltage
- 19 mm Dia maximum conductor
- 4 mm safety connector output connection
- Manual adjust via thumbwheel output zero
- 1.5 m L cable
- -20 to 85 deg C storage temperature range (with battery removed)
- 15 to 85% non-condensing operating humidity
- 300 VRMS, category III, pollution degree 2
