FLUKE FLUKE-773

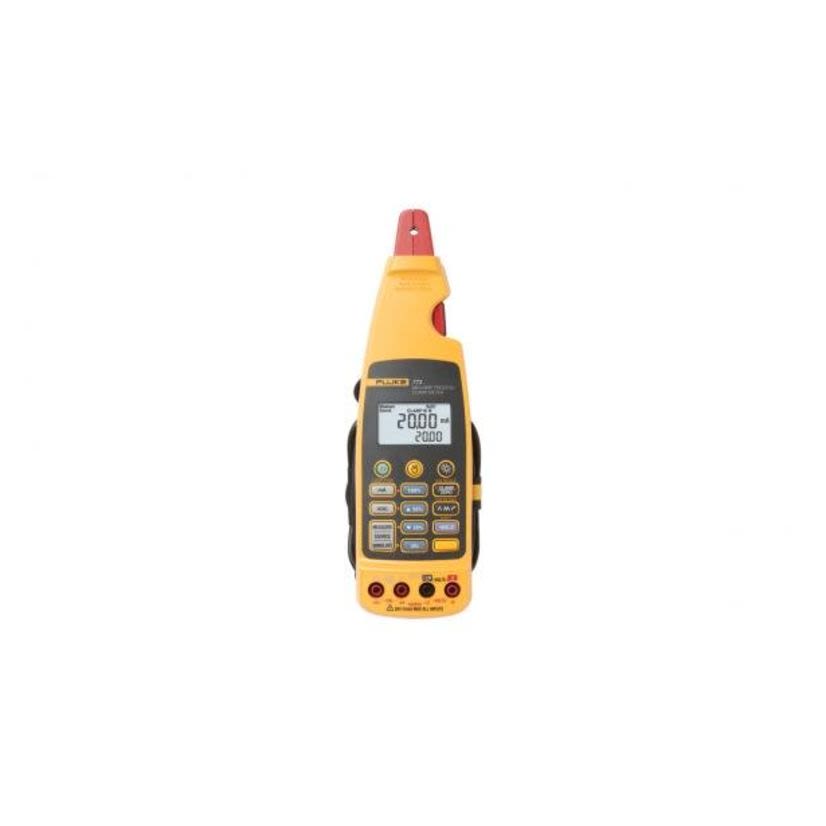

Fluke FLUKE-773 Milliamp Process Clamp Meter, 0 to 30 V DC, 0 to 100 mA, Backlit Display
FLUKE FLUKE-773
Fluke FLUKE-773 Milliamp Process Clamp Meter, 0 to 30 V DC, 0 to 100 mA, Backlit DisplayNon-stock product. Available to order - lead time may vary.
BrandFLUKE
MFG #FLUKE-773
Werner Part #3830254
UPC095969475822
Non-stock product. Available to order - lead time may vary.
BrandFLUKE
MFG #FLUKE-773
Werner Part #3830254
UPC095969475822
Product Description
Fluke Clamp Meter, Milliamp Process, 0 to 30 V DC, 0 to 100 mA Electrical Rating, Backlit Display, 0.2% + 2 Counts Voltage Accuracy, (4) 1.5 V AA Alkaline Batteries Power Source, -10 to 50 deg C Operating, 11.61 in L x 5.91 in W x 2.95 in H Dimensions, Plastic
Attributes
Documents
Applications
Included
Features
Attributes
Country of OriginCN
Dimensions11.61 in L x 5.91 in W x 2.95 in H
Display TypeBacklit
Electrical Ratings0 to 30 V DC, 0 to 100 mA
ManufacturerFluke
MaterialPlastic
Operating Temperature-10 to 50 deg C
Power Source(4) 1.5 V AA Alkaline Batteries
TypeMilliamp Process
Type / StyleMilliamp Process
Voltage Accuracy0.2% + 2 Counts
Applications
For use to measure output signals without breaking the loop or bringing down the system
Included
(4) AA Alkaline Batteries (Installed), Soft Carrying Case, TL75 Test Leads, AC 72 Detachable Clip, TL940 Mini Hook Test Leads, Instruction Sheet, Hanging Tool With Hook and Loop Strap
Features
- Hard plastic enclosure type
- Measurement spotlight illuminates hard to see wires in dark enclosures
- Best in class 0.2% accuracy
- Dual backlit display with both mA measurement and percent of 4 to 20 mA span
- Measure 4 to 20 mA signals without "breaking the loop"
- Detachable clamp with extension cable for measurements in tight locations
- Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
- Automatically change the 4 to 20 mA output for remote testing
- Power saving features, auto-off, backlight timeout extend battery life
- Hold function captures and displays changing measurements
- -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm Max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V alkaline, IEC LR6, 40 hours typical power, battery life
- Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement
- Scaled mA output provides a continuous mA signal that corresponds to the 4 mA to 20 mA signal measured by the mA clamp, enables milliamp signal logging to a separate logging device without breaking the loop
- Output mA signal enables a logging DMM or other device to record the 4 to 20 mA signal without breaking the loop, apply a mA input signal to a device and measure its 4 to 20 mA output on devices such as valves or mA isolators voltage output linear ramp or 25% step output, automatically change the voltage output for remote testing
- 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range
