FLUKE FLUKE-116/62-MAX+
Fluke FLUKE-116/62-MAX+ HVAC Technicians Combo Kit
FLUKE FLUKE-116/62-MAX+
Fluke FLUKE-116/62-MAX+ HVAC Technicians Combo KitNon-stock product. Available to order - lead time may vary.
BrandFLUKE
MFG #FLUKE-116/62-MAX+
Werner Part #3997519
UPC095969659192
Non-stock product. Available to order - lead time may vary.
BrandFLUKE
MFG #FLUKE-116/62-MAX+
Werner Part #3997519
UPC095969659192
Product Description
Fluke HVAC Technicians Combo Kit, 600 V AC Max Voltage, 6000 Count Display, 9 V DC Alkaline Battery, 167 mm x 84 mm x 46 mm HVAC Multimeter, 175 mm x 85 mm x 75 mm 62 MAX+ Infrared Thermometer
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
Country of OriginSingapore
Dimensions167 mm x 84 mm x 46 mm HV AC Multimeter, 175 mm x 85 mm x 75 mm 62 MAX+ Infrared Thermometer
ManufacturerFluke
Type / StyleTechnicians Combo Kit
Documents
Applications
HVAC Applications
Included

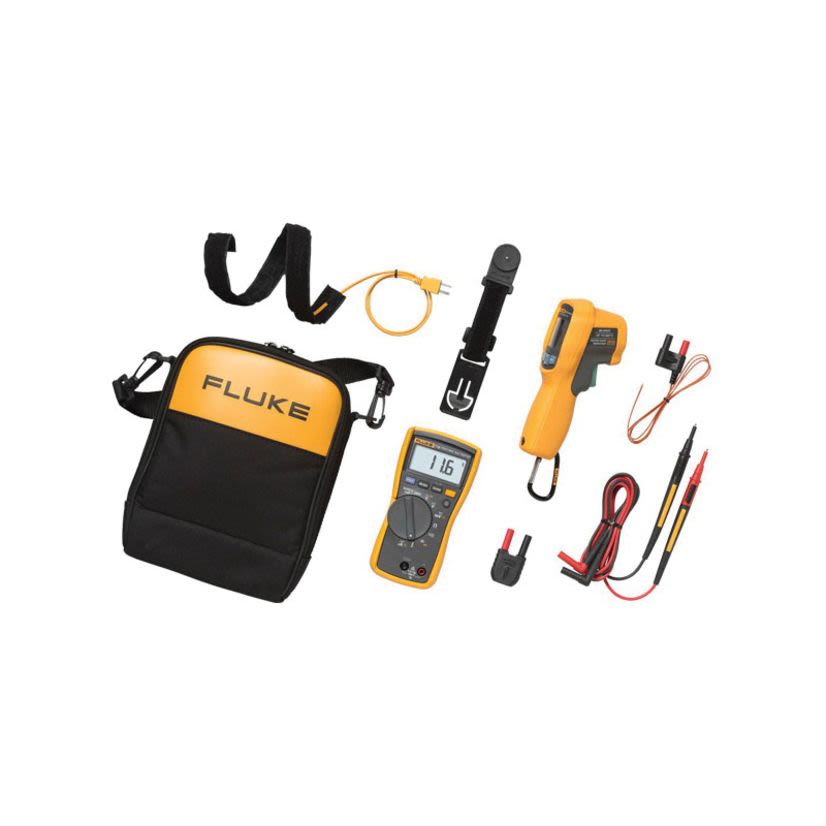

Fluke 62 MAX+ Infrared Thermometer, Fluke 116 HVAC Multimeter with Temperature and Microamps
Warranty
3 Years
Features
- Fluke 116 HVAC multimeter with temperature and micro amps, TL175 Hard Point test lead set, TPak ToolPak magnetic meter hanging strap, flexible cuff pipe clamp thermocouple, 80BK integrated temperature probe
- 80AK-A thermocouple adapter, C115 deluxe soft carrying case with shoulder strap
- Fluke 62 MAX+ small in size, big on toughness, dust and water-resistant: IP54 rated, rugged 3 meter (9.8 ft) drop tested, ergonomically designed - completely redesigned for a more natural hand fit, distance to spot 12:1, dual lasers identifies area to be measured
- Fluke 62 MAX+ - large, backlit display makes data easier to read, even in dark areas
- 600 mV range, 0.1 mV resolution, 1.0% + 3 (DC, 45 Hz to 500 Hz)/2.0% + 3 (500 Hz to 1 kHz)
- Continuity - 600 ohm range, 1 ohm resolution, beeper on < 20 ohm, Off > 250 ohm, detects opens or shorts of 500 us or longer
- Diode test - 2 V/0.001 V range/resolution, 0.9% + 2 accuracy
- Capacitance - 1000 nF/1 nF, 10.00 uF/0.01 uF, 100.0 uF/0.1 uF, 9999 uF/1 uF, 100 uF to 1000 uF range/resolution, 1.9% + 2 accuracy, > 1000 uF range/resolution, 5% + 20% accuracy
- LoZ capacitance - 1 nF to 500 uF range, 10% + 2 typical accuracy
- Temperature2 (Type K thermocouple) -40 to 400 deg C/0.1 deg C range/resolution, 1% + 102 accuracy, -40 to 752 deg F/0.2 deg F range/resolution, 1% + 182 accuracy
- 99.99 Hz/0.01 Hz, 999.99 Hz/0.1 Hz, 9.999 Hz/0.001 Hz, 50 Hz/0.01 Hz, 0.1% + 2 Hz range/resolution, 0.1% + 2 accuracy (V or A input)2
- Battery with 400 hr life for 116 HVAC multimeter
- -30 to 650 deg C temperature
- <300 ms (95% of reading) response time for 62 MAX+ infrared thermometer
- Built-in thermometer for HVAC applications
- Microamps to test flame sensors
- Low input impedance helps prevent false readings due to ghost voltage
- Work in poorly lit areas with the Large white LED backlit display
- True-RMS voltage and current for accurate measurements on non-linear loads
- Measures 10 A directly (20 A overload for 30 sec) without a current clamp
Specifications
600 V AC Max Voltage, 6000 Count Display, 9 V DC Alkaline Battery
