Bussmann Series CCP2-1-30CC

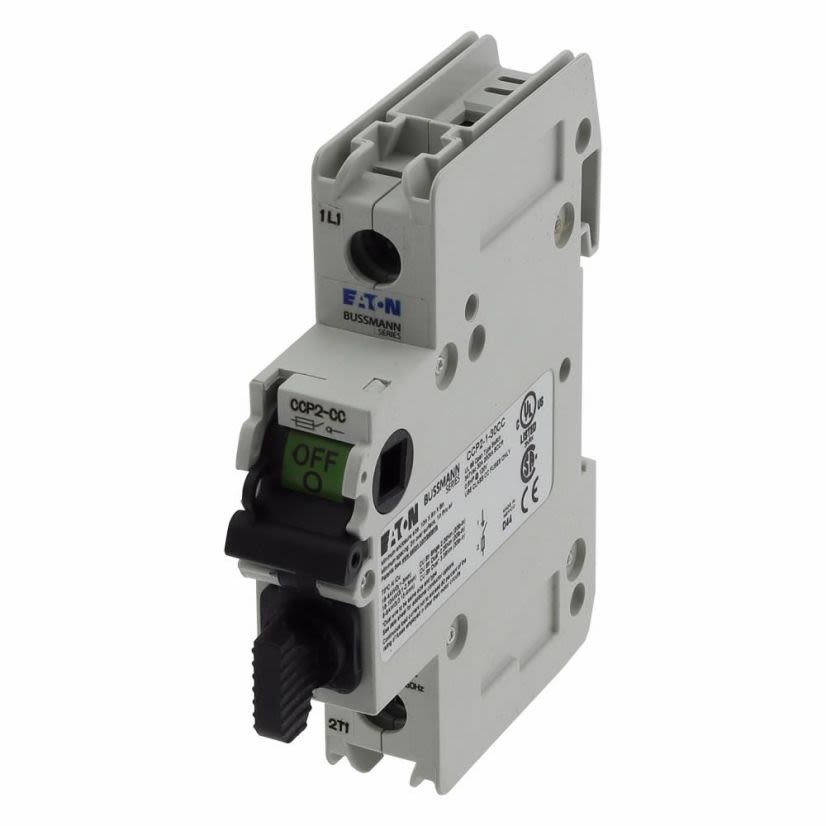

Bussmann CCP2-1-30CC Compact Fused Compact Circuit Protector Disconnect Switch, 347 V AC/125 V DC, 30 A, 1 Poles
Bussmann Series CCP2-1-30CC
Bussmann CCP2-1-30CC Compact Fused Compact Circuit Protector Disconnect Switch, 347 V AC/125 V DC, 30 A, 1 PolesIn Stock: 13more info
|
In Stock: 13more info
|
Product Description
Bussmann Compact Circuit Protector Disconnect Switch, Compact Fused, 347 V AC/125 V DC, 30 A, 1 Pole, DIN Rail Mount, -4 to 167 deg F Operating, 3.3 in W, 8.1 in Height
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginCN
Height8.1 in
ManufacturerEaton
Mounting Type35 mm DIN Rail
Number of Poles1
TypeCompact Fused
Width3.3 in
Applications
For use with Class CC fuses
Features
- Extremely compact (18 mm wide per pole ) design
- Disconnect rated for load isolation
- Open fuse indication
- Standard local open fuse indicating light for each pole
- IP20 finger safe with 10 AWG or larger wire (box lug terminals only)
- Built-in switch interlock prohibits removing the fuse under load
- 1/4 in lock for rotary operated switches
- Multi-wire lug kit with terminal shrouds allows for power distribution to multiple loads
- Each lug has three ports rated for single and dual wires
- 1/2 hp at 240 VAC
Specifications
- UL 98 File No. E302370, Guide WHTY
- cULus to Canadian Standard 22.2 No. 4-04
- UL File No. E302370, Guide WHTY7
- CE Certified
