Cutler-Hammer Series BRP60B200

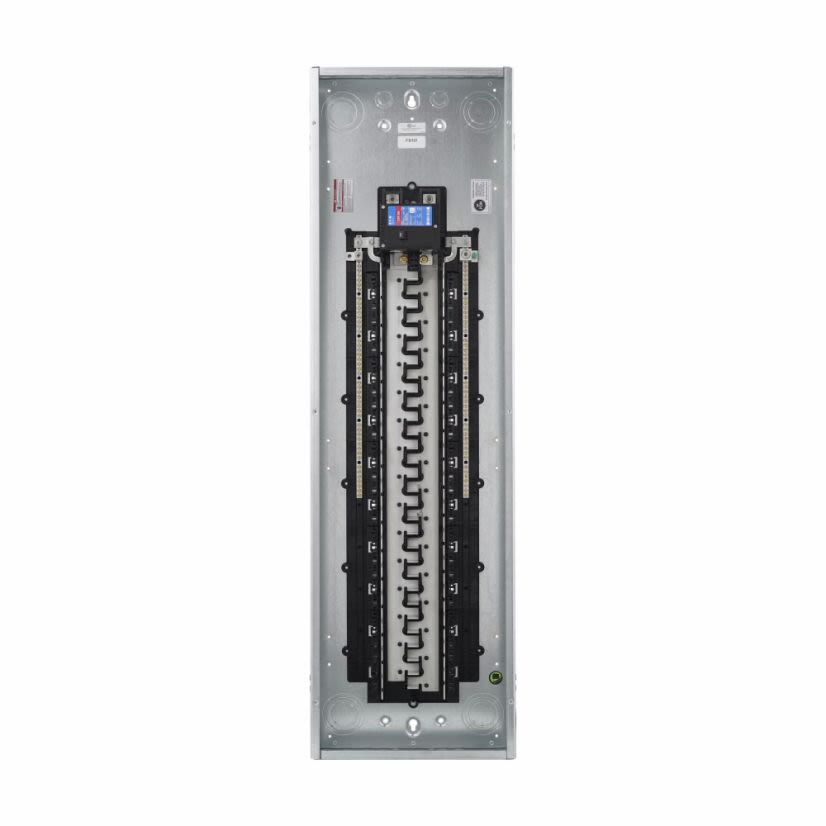

EATON BRP60B200 1-Phase Main Breaker Load Center, 120/240 V AC, 200 A, 1 Poles, 25 kA Interrupt
Cutler-Hammer Series BRP60B200
EATON BRP60B200 1-Phase Main Breaker Load Center, 120/240 V AC, 200 A, 1 Poles, 25 kA InterruptIn Stock: 2more info
|
BrandCutler-Hammer Series
MFG #BRP60B200
Werner Part #4321574
UPC786689053062
In Stock: 2more info
|
BrandCutler-Hammer Series
MFG #BRP60B200
Werner Part #4321574
UPC786689053062
Product Description
EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 200 A, 1 Pole, 25 kA Interrupt, 60 Circuits, BR/CSR Breaker, 3-Wire Wiring Configuration, 60 Spaces, 2 AWG to 300 kcmil Wire, Plug-On Mounting, NEMA 1 Enclosure, X10 Enclosure Box, Galvanized Steel Housing Material, 48 in L x 14.31 in W x 3.88 in H Dimensions
Attributes
Documents
Applications
Features
Included
Warranty
Attributes
Breaker TypeBR/CSR
Connection TypeLine/Load
Country of OriginUS
Dimensions48 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX10
Enclosure TypeNEMA 1
FrameJG
Frequency Rating50/60 Hz
Housing MaterialGalvanized Steel
Interrupt Rating25 kA
ManufacturerEaton
Number of Circuits60
Number of Poles1
Number of Spaces60
SeriesG Series
Temperature Rating40 deg C
Trip Range1000 to 2000
Trip TypeAdjustable Magnetic/Fixed Thermal
Type1-Phase
Wiring Configuration3-Wire
Documents
Applications
Electrical Assemblies, Panels and EOEMs, Indoor, Residential and Light Commercial Applications
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
- Standard Tin-plated aluminum bus for excellent conductivity and corrosion-resistance
- Tangential center knockout - easier installation for conduit applications
- Commercial grade main breaker, 25 kA series rated main breaker for superior protection
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap, provides easy field conversion for service entrance applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- 2 AWG to 300 kcmil copper/aluminum wire
Included
Cover and Combination Trim
Warranty
10 years
