nVent ERICO SB80AL

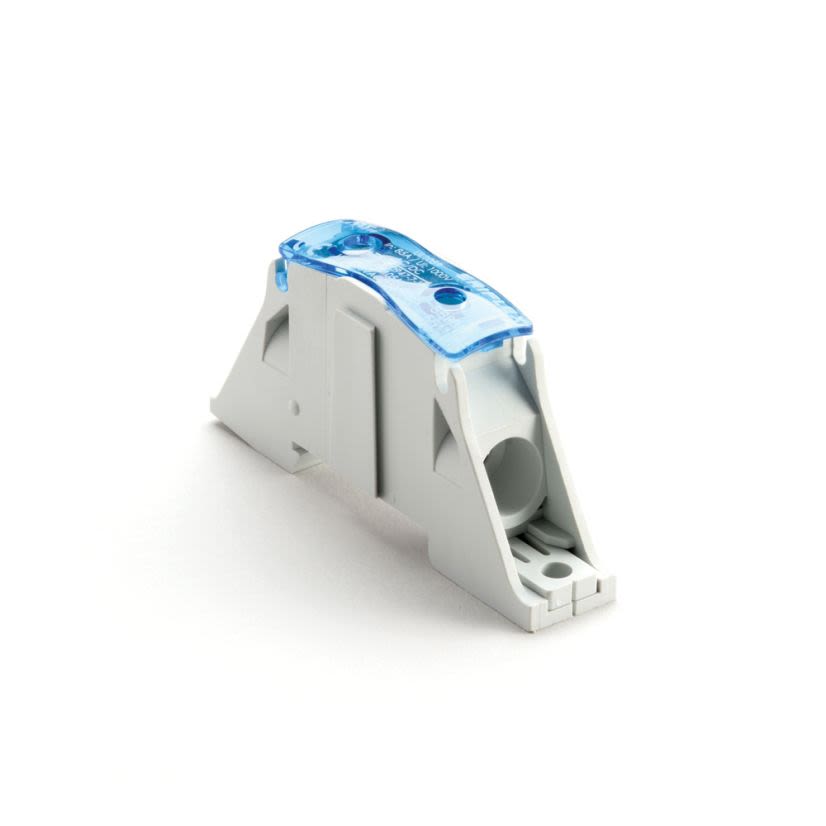

nVent ERIFLEX SB80AL Power Block, 1000 V AC/1000/1500 V DC, 85/105 A, 16 to 4 AWG, 16 to 10 AWG Wire, Aluminum/Thermoplastic
nVent ERICO SB80AL
nVent ERIFLEX SB80AL Power Block, 1000 V AC/1000/1500 V DC, 85/105 A, 16 to 4 AWG, 16 to 10 AWG Wire, Aluminum/ThermoplasticNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent ERIFLEX Power Block, 1000 V AC/1000/1500 V DC, 85/105 A, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 16 to 4 AWG, 16 to 10 AWG Wire, 100 kA Short Circuit, Aluminum/Thermoplastic, Tinned, 3.3 in H x 0.68 in W x 1.65 in D Dimensions
Attributes
Documents
Features
Included
Applications
Specifications
Attributes
Country of OriginCN
Dimensions3.3 in H x 0.68 in W x 1.65 in D
FinishTinned
ManufacturernVent
MaterialAluminum/Thermoplastic
Short Circuit Current Rating100 kA
Type / StyleDistribution Blocks and Power Terminals
Documents
Features
- Can be connected with round cross section cable or flat connection system like nVent ERIFLEX Flexibar Advanced or IBSB Advanced Insulated Braided Conductor
- Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
- Screw retaining cover is hinged and removable
- Modular snap-together blocks for building multi-pole power blocks
- Easily clips onto DIN rail or mounts to panel with screws
- Voltage detection and measurement connection
- 95 Percent fill ratio
Included
561160
Applications
panel; solar; telecom
Specifications
- Compact power block with high short circuit current rating. Tinned copper or aluminum block allows for copper or aluminum conductor connections. Screw retaining cover is hinged and removable. Design allows for visual inspection of conductor and confirmation of connection. Gangable for building multi-pole power blocks. Easily clips onto DIN rail or mounts to panel with screws. 95% fill ratio. Halogen free. RoHS compliant
