Cutler-Hammer Series XTCE080F00B

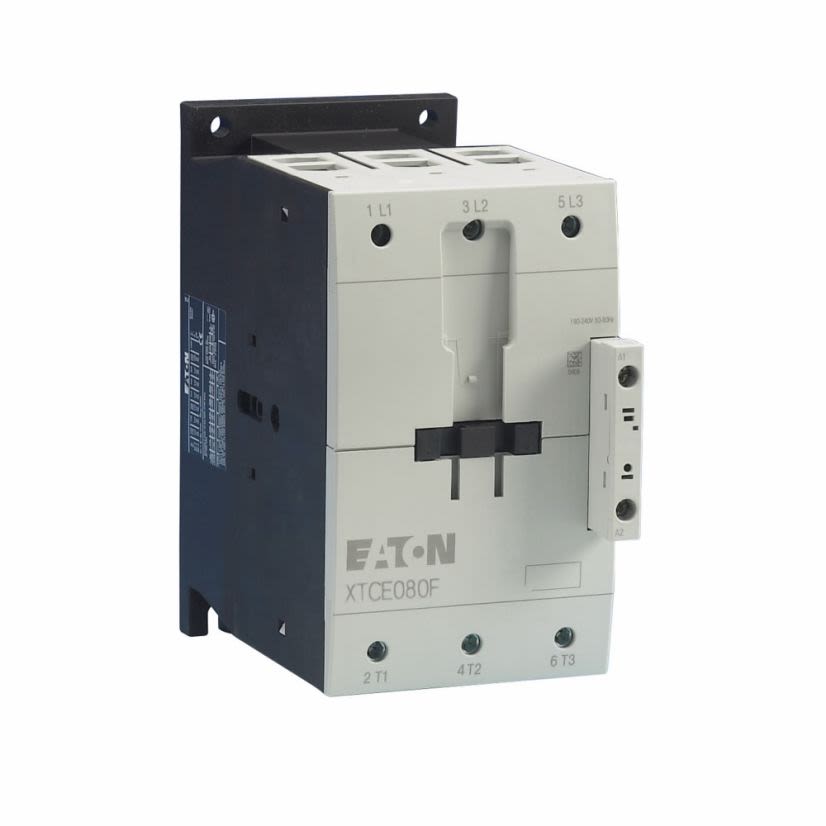

EATON XTCE080F00B Full Voltage Non-Reversing IEC Contactor, 220 to 240 V AC V Coil, 80 A, 0NO-0NC Contact, 3 Poles
Cutler-Hammer Series XTCE080F00B
EATON XTCE080F00B Full Voltage Non-Reversing IEC Contactor, 220 to 240 V AC V Coil, 80 A, 0NO-0NC Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTCE080F00B
Werner Part #3992905
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTCE080F00B
Werner Part #3992905
Product Description
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 220 to 240 V AC Coil, 80 A Maximum Load Current, 25 hp, 37 hp, 48 hp Coil, 3 Pole, 0NO-0NC Contact Configuration, 90 mm Size, Screw Terminal, IP20 Enclosure, -13 to 122 deg F Operating, DIN Rail/Panel Mounting, 6.2992 x 4.3701 x 6.6929 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Power Rating25 hp, 37 hp, 48 hp
Coil Voltage220 to 240 V AC
Contact Configuration0NO-0NC
Country of OriginRO
Dimensions6.2992 x 4.3701 x 6.6929 in
Enclosure TypeIP20
Full Load CurrentMax: 80 A
ManufacturerEaton
Maximum Load Current80 A
Mounting TypeDIN Rail/Panel
Number of Poles3
Operating Temperature-13 to 122 deg F
SeriesXT Series
Size90 mm
Terminal TypeScrew
Type / StyleF-Frame Full Voltage Non-Reversing
Applications
Electrical Assemblies, Panels and EOEMs and Other Applications
Warranty
1 year
Features
- Electronic coil controller allows contactors to reduce power consumption and generate less heat, resulting in lower cooling requirements, the ability to mount more contactors/starters per cabinet and an extended life on pilot devices that carry control signals
- AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
- Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs by limiting the number of products ordered and stocked
- Wiring is not required, therefore increasing installation and maintenance efficiency
- Expanded range of DC coil control voltages, allows reliable operation through fluctuations in control voltages
- Twin terminals with separate sockets in contactors up to 400 A offer installation and application flexibility when using different size wires
- The improved integrity of the connections reduces cabling faults
- 25 hp at 220/230 VAC, 37 hp at 380/400 VAC, 48 hp at 415 VAC coil power rating
