Cutler-Hammer Series XTCE032C10B

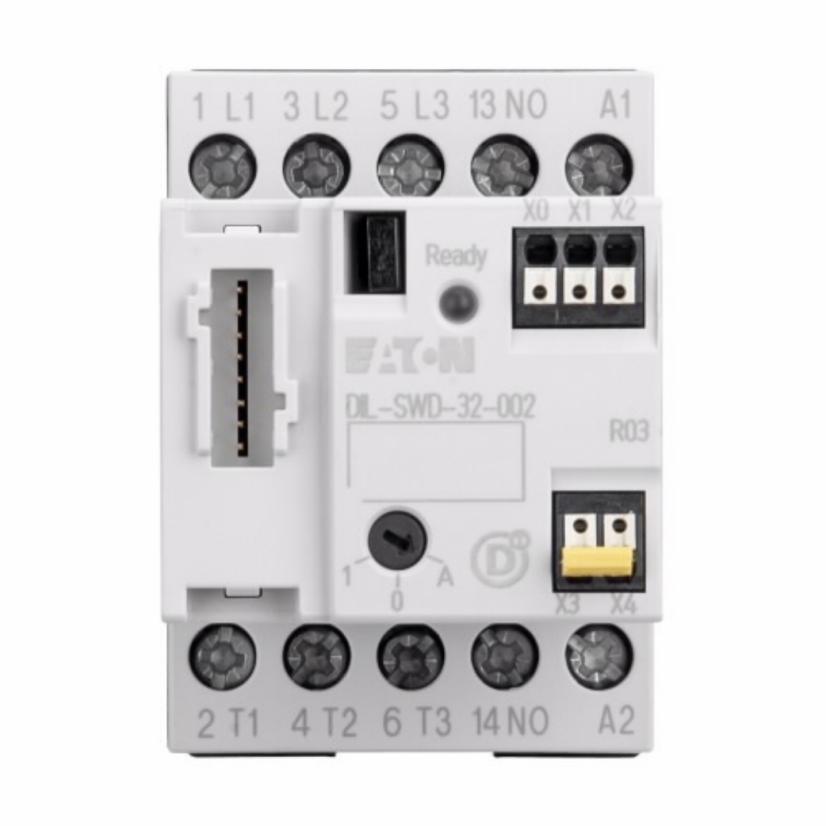

EATON XTCE032C10B Full Voltage Non-Reversing IEC Contactor, 220 to 240 V AC V Coil, 32 A, 1NO Contact, 3 Poles
Cutler-Hammer Series XTCE032C10B
EATON XTCE032C10B Full Voltage Non-Reversing IEC Contactor, 220 to 240 V AC V Coil, 32 A, 1NO Contact, 3 PolesIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 220 to 240 V AC Coil, 32 A Maximum Load Current, 3 hp at 115 VAC 1 ph, 5 hp at 200/230 VAC 1 ph, 10 hp at 200/230 VAC 3 ph, 20 hp at 460 VAC 3 ph, 25 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 45 mm Size, Screw Terminal, IP20 Enclosure, -13 to 122 deg F Operating, DIN Rail/Panel Mounting, 4 x 3-1/2 x 2 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Power Rating3 hp at 115 VAC 1 ph, 5 hp at 200/230 VAC 1 ph, 10 hp at 200/230 VAC 3 ph, 20 hp at 460 VAC 3 ph, 25 hp at 575 VAC 3 ph
Coil Voltage220 to 240 V AC
Contact Configuration1NO
Country of OriginRO
Dimensions4 x 3-1/2 x 2 in
Enclosure TypeIP20
Frequency Rating50/60 Hz
Full Load CurrentMax: 32 A
ManufacturerEaton
Maximum Load Current32 A
Mounting TypeDIN Rail/Panel
Number of Auxiliary Contacts1
Number of Poles3
Operating Temperature-13 to 122 deg F
SeriesXT Series
Size45 mm
Terminal TypeScrew
Type / StyleC-Frame Full Voltage Non-Reversing
Applications
Electrical Assemblies, Panels and EOEMs and Other Applications
Warranty
1 year
Features
- Electronic coil controller allows contactors to reduce power consumption and generate less heat, resulting in lower cooling requirements, the ability to mount more contactors/starters per cabinet and an extended life on pilot devices that carry control signals
- AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
- Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs by limiting the number of products ordered and stocked
- Wiring is not required, therefore increasing installation and maintenance efficiency
- Expanded range of DC coil control voltages, allows reliable operation through fluctuations in control voltages
- Twin terminals with separate sockets in contactors up to 400 A offer installation and application flexibility when using different size wires
- The improved integrity of the connections reduces cabling faults
- 10 kW at 220/230 VAC, 15 kW at 380/400 VAC, 18 kW at 415 VAC, 17 kW at 660/690 VAC maximum power ratings
