Cutler-Hammer Series V48M28T7516

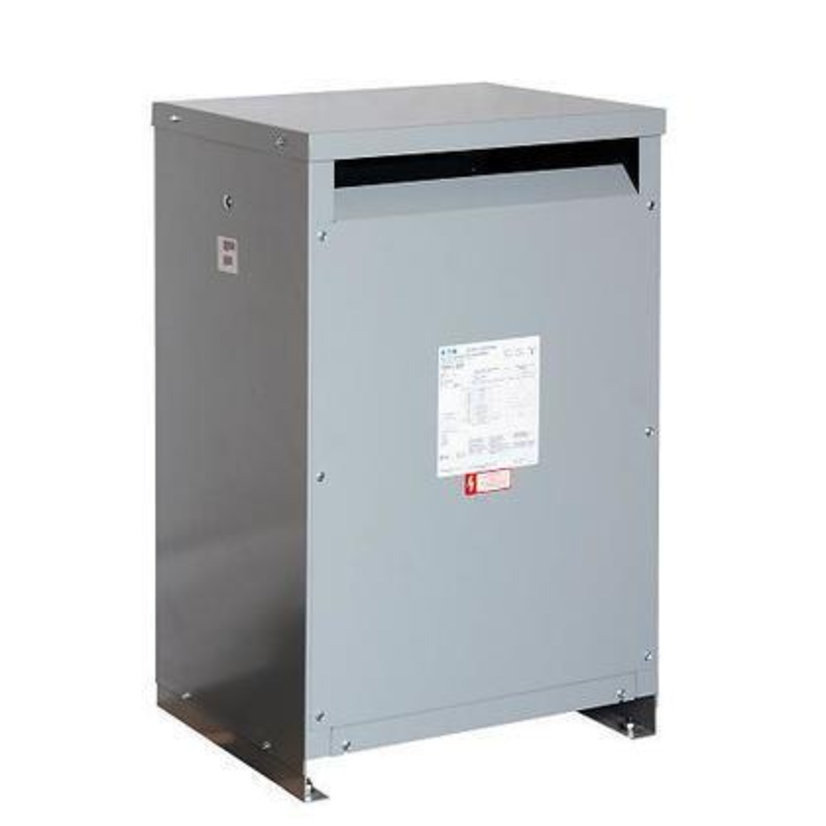

EATON Cutler-Hammer Series V48M28T7516 Ventilated Transformer
Cutler-Hammer Series V48M28T7516
EATON Cutler-Hammer Series V48M28T7516 Ventilated TransformerIn Stock: 4more info
|
BrandCutler-Hammer Series
MFG #V48M28T7516
Werner Part #4087022
UPC78668014754
In Stock: 4more info
|
BrandCutler-Hammer Series
MFG #V48M28T7516
Werner Part #4087022
UPC78668014754
Product Description
EATON Cutler-Hammer Series General purpose ventilated transformer, Fungus proof, AL windings, DOE 2016, NEMA 2, FR942, 220°C, 75 kVA, Floor mnt, 3-phase, PV: 480V delta, SV: 208Y/120, 50 dB, 2 at +2.5%, 4 at -2.5%, 150°C, …
Attributes
Documents
Features
Attributes
Circuit Type942 Frame
Connection TypeLug
Country of OriginUnited States
Dimensions24 in L x 30-1/2 in W x 43 in H
Efficiency0.98 %
Enclosure TypeNEMA 2
Frequency Rating60 Hz
Housing MaterialSteel
Insulation Type220 deg C
ManufacturerEaton Corp
Mounting TypeFloor
Number of Taps6
Phase3 phase
Power Rating75 kVA
Primary Voltage480 VAC
Secondary Voltage208Y/120 VAC
SeriesPow-R-Xpress
Temperature Rating150 deg C
TypeDry-Type Distribution Transformers
Type / StyleType DT-3 Dry Type Energy Efficient General Purpose Ventilated
Voltage480-208Y/120
Documents
Features
Designed to comply with DOE 2016 efficiency requirementsEfficiency verified by UL and include the UL energy efficiency verification markFactory installed bonding ground barApproved to be installed indoors with 2 in clearance on the sides and rearAluminum windings2 at +2.5%, 4 at -2.5% tapsFungus-resistant varnished core and coil
