Cutler-Hammer Series T20P11S1516

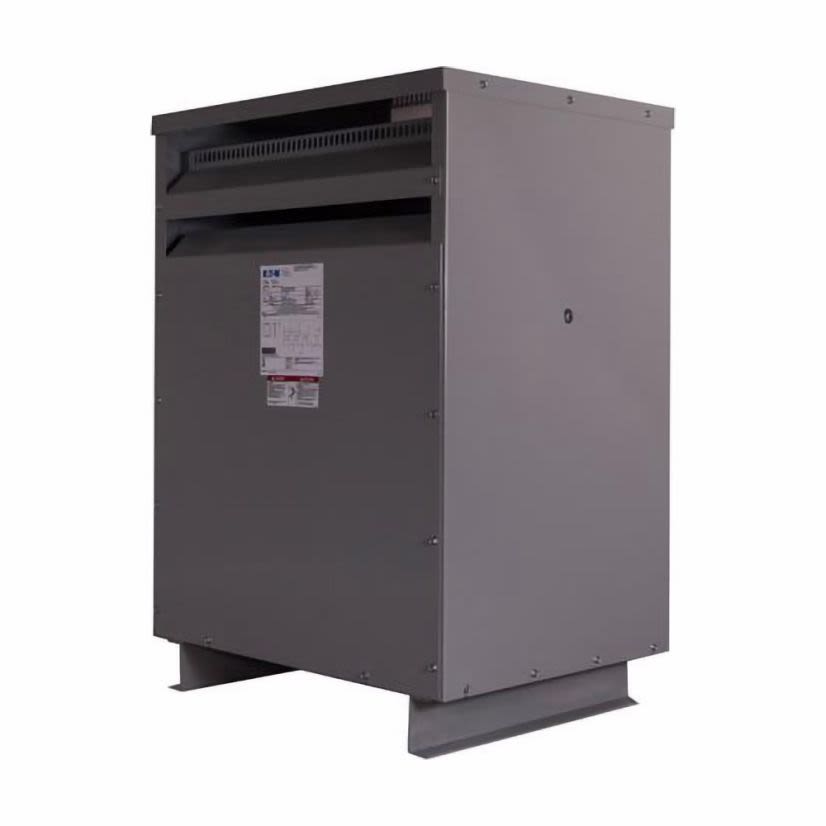

EATON T20P11S1516 Type DS-3 Dry Energy Efficient Ventilated Distribution Transformer, 240/480 VAC Primary, 120Y/240 V AC Secondary, 15 kVA Power Rating, 60 Hz, 1 Phase
Cutler-Hammer Series T20P11S1516
EATON T20P11S1516 Type DS-3 Dry Energy Efficient Ventilated Distribution Transformer, 240/480 VAC Primary, 120Y/240 V AC Secondary, 15 kVA Power Rating, 60 Hz, 1 PhaseNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Distribution Transformer, Type DS-3 Dry Energy Efficient Ventilated, 240/480 VAC Primary, 120Y/240 V AC Secondary, 15 kVA Power, 60 Hz Frequency, 1 ph, 9 Taps, Floor/Upright/Wall Mounting, Class S/220 deg C Insulation, NEMA 2 Enclosure, 150 deg C, 17.4 in L x 22.45 in W x 33.75 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
Country of OriginMX
Dimensions17.4 in L x 22.45 in W x 33.75 in H
Enclosure TypeNEMA 2
Frequency Rating60 Hz
Insulation TypeClass S/220 deg C
ManufacturerEaton
Mounting TypeFloor/Upright/Wall
Number of Taps9
Phase1
Power Rating15 kVA
Primary Voltage240/480 V AC
Secondary Voltage120Y/240 V AC
Temperature Rating150 deg C
TypeType DS-3 Dry Energy Efficient Ventilated
Applications
General Purpose, Commercial, Institutional Buildings, Structures and Power Distribution and Controls Applications
Features
- Short term overload capability as required by ANSI
- Meet NEMA ST-20 sound levels
- Fungus-resistant varnished core and coil
- 1 at +5%, 2 at -5%, 2 at +2.5%, 4 at -2.5% taps
Warranty
1 year
