Cutler-Hammer Series S811+N66P3S

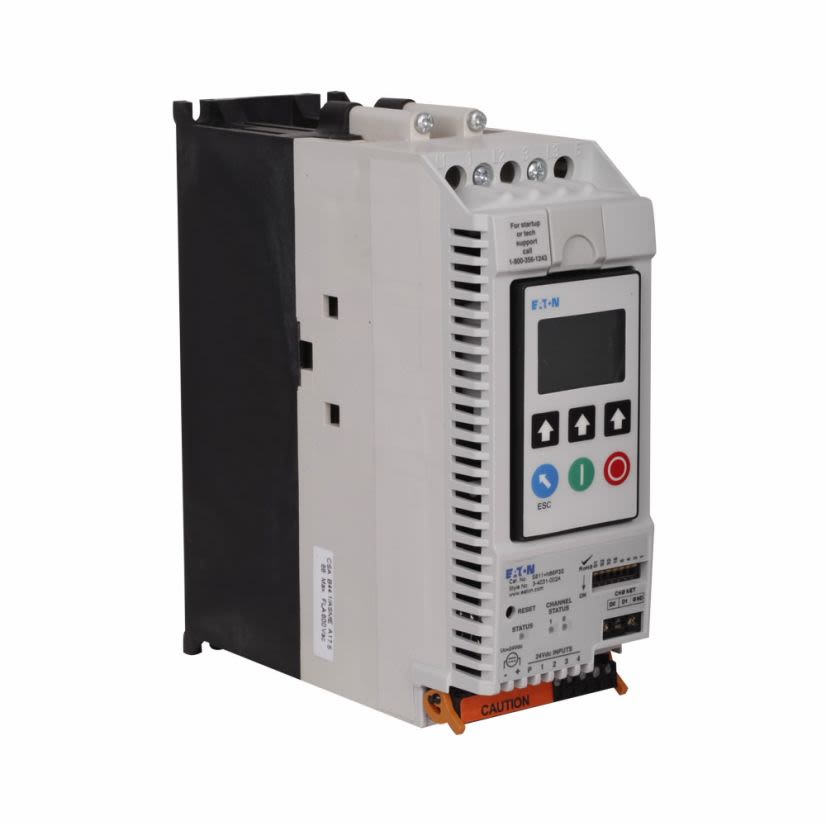

EATON S811+N66P3S S811 N Frame Non-Combination Soft Starter With Digital Interface Module and Heavy Duty Cell, 21.6/26.4 V AC V Coil, 3 Poles, Open Enclosed Enclosure
Cutler-Hammer Series S811+N66P3S
EATON S811+N66P3S S811 N Frame Non-Combination Soft Starter With Digital Interface Module and Heavy Duty Cell, 21.6/26.4 V AC V Coil, 3 Poles, Open Enclosed EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #S811+N66P3S
Werner Part #4043037
UPC786685846200
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #S811+N66P3S
Werner Part #4043037
UPC786685846200
Product Description
EATON, S811+N66P3S, Soft Starter With Digital Interface Module and Heavy Duty Cell, N Frame Non-Combination, Series: S811, 200 to 600 V AC, 66 A, 47/63 Hz Frequency, 21.6/26.4 V AC Coil, 3 Pole, 0.5 to 18 s Timing, 3 ph, Lug Connection, Solid-State Overload Relay, Open Enclosed Enclosure, -30 to 50 deg C Operating, 6.45 in L x 2.66 in W x 7.37 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Coil Voltage21.6/26.4 V AC
Connection TypeLug
Country of OriginDO
Dimensions6.45 in L x 2.66 in W x 7.37 in H
Enclosure TypeOpen Enclosed
Frequency Rating47/63 Hz
ManufacturerEaton
Number of Poles3
Operating Temperature-30 to 50 deg C
Phase3
SeriesS811
Type / StyleN Frame Non-Combination
Documents
Applications
Motor and Power Control Equipment Applications
Features
- Communication capabilities with various protocols
- Digital interface module (DIM) provides an intuitive, easy to use human interface with powerful configuration capabilities to maximize system performance
- Door or device mounted dim enables users to safely configure, commission, monitor and troubleshoot the system at the electrical panel without opening the enclosure door
- System operating parameters can be monitored enterprise wide through a communications network
- Increase uptime by providing data for process management and preventive diagnostics
- Run bypass mode greatly reduces internal heating created by the greater power dissipation in the SCRs
- Bypass contactors directly connect the motor to the line and improves system efficiency by reducing internal power losses
- Internal solid state overload protection provides accurate current measurement and trip settings
- Internal run bypass contactors and overload protection eliminate the need for additional devices, reducing enclosure sizes minimizing installation and wiring time and reducing overall assembly size and cost
- Wide range of overload FLA settings and a selectable trip class offers users the flexibility to fine tune the starter to match specific application requirements
- Variable ramp times and torque control settings provide unlimited starting configurations, allowing for maximum application flexibility
- Kick start feature enables soft starting of high friction loads
- Soft stop control for applications where an abrupt stop of the load is not acceptable
- Pump control option with sophisticated pump algorithms on both starting and stopping that minimize the pressure surges that cause water hammer
- 6 SCRs control all 3 motor phases, providing smooth acceleration and deceleration performance
- Soft acceleration and deceleration reduces wear on belts, gears, chains, clutches, shafts and bearings
- Reduce the peak inrush current's stress on the power system
- Minimize peak starting torque to diminish mechanical system wear and damage
- NEMA Size 0
