Cutler-Hammer Series R9L3200FJ

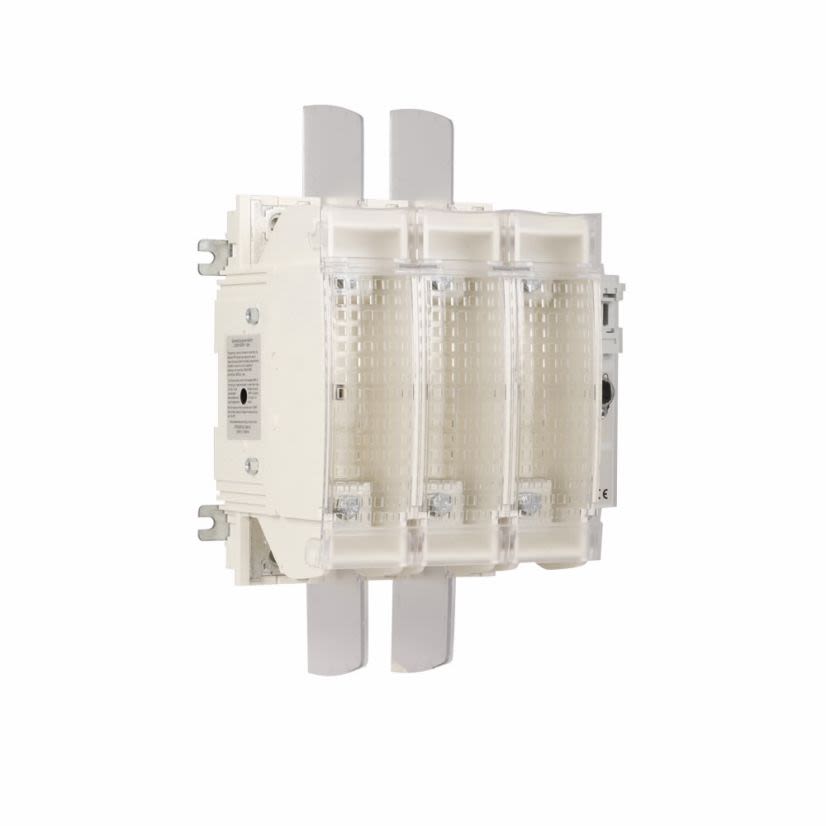

EATON R9L3200FJ L -Frame Fusible Rotary Disconnect Switch, 600 V AC, 200 A, 144 hp, 150 hp, 3 Poles
EATON R9L3200FJ L -Frame Fusible Rotary Disconnect Switch, 600 V AC, 200 A, 144 hp, 150 hp, 3 Poles

Cutler-Hammer Series R9L3200FJ

EATON R9L3200FJ L -Frame Fusible Rotary Disconnect Switch, 600 V AC, 200 A, 144 hp, 150 hp, 3 Poles
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #R9L3200FJ

Werner Part #3888945

UPC786685408811

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #R9L3200FJ

Werner Part #3888945

UPC786685408811

Product Description

EATON Rotary Disconnect Switch, L -Frame Fusible, Series: R9 Series, 600 V AC, 200 A, 144 hp, 150 hp, 3 ph, 3 Pole, 200 kA Short Circuit, Rotary Handle Actuator, Class J Insulation, DIN Rail Mount, Lug Terminal, 5.12 in L x 7.69 in W x 11.47 in H
Attributes
Actuator TypeRotary Handle
Connection TypeLine/Load
Country of OriginFR
Dimensions5.12 in L x 7.69 in W x 11.47 in H
FrameK
Frequency Rating50/60 Hz
Horsepower144 hp, 150 hp
Insulation TypeClass J
Interrupt Rating65 kAIC at 480 VAC/100 kAIC at 240 VAC
ManufacturerEaton
Mounting TypeDIN Rail
Number of Poles3
Phase3
SeriesR9 Series
Short Circuit Current Rating200 kA
Size of Wire3 AWG to 350 kcmil
Temperature Rating40 deg C
Terminal TypeLug
Trip TypeFixed Thermal/Fixed Magnetic
TypeL -Frame Fusible
Type / StyleFusible L Frame
Voltage600 VAC
