Cutler-Hammer Series R9C3030U

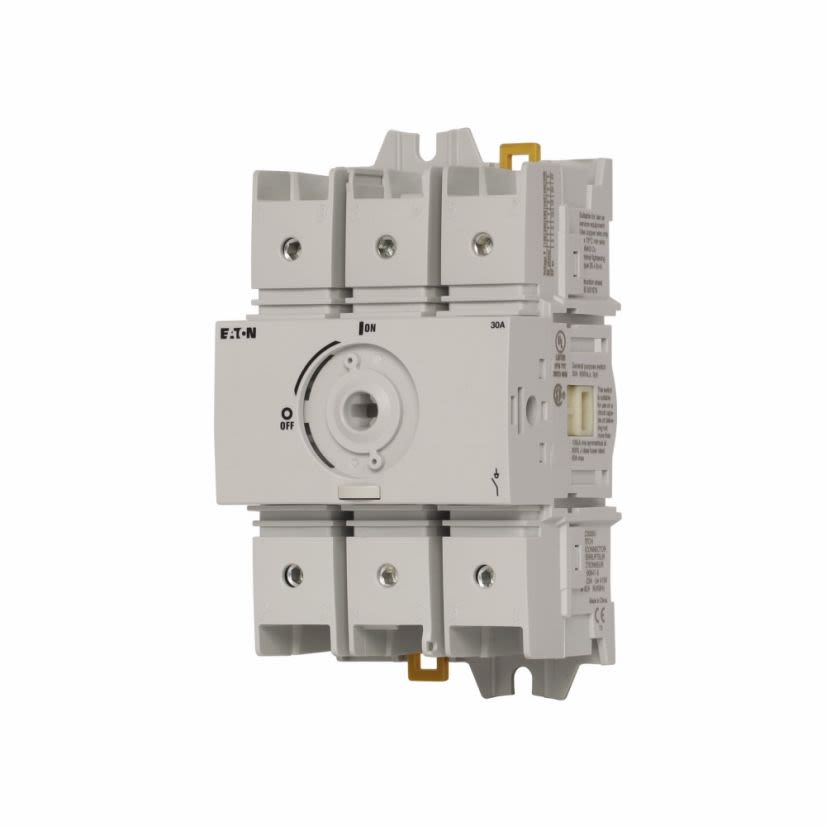

EATON R9C3030U C-Frame Non-Fusible Rotary Disconnect Switch, 600 V AC, 30 A, 25 hp, 27 hp, 3 Poles
EATON R9C3030U C-Frame Non-Fusible Rotary Disconnect Switch, 600 V AC, 30 A, 25 hp, 27 hp, 3 Poles

Cutler-Hammer Series R9C3030U

EATON R9C3030U C-Frame Non-Fusible Rotary Disconnect Switch, 600 V AC, 30 A, 25 hp, 27 hp, 3 Poles
Inventory Not Available

BrandCutler-Hammer Series

MFG #R9C3030U

Werner Part #3889199

UPC786685402918

Inventory Not Available

BrandCutler-Hammer Series

MFG #R9C3030U

Werner Part #3889199

UPC786685402918

Product Description

EATON Rotary Disconnect Switch, C-Frame Non-Fusible, Series: R9 Series, 600 V AC, 30 A, 25 hp, 27 hp, 3 ph, 3 Pole, 2 Wires, 100 kA Short Circuit, Rotary Handle/Shaft Actuator, DIN Rail Mount, Line/Load Terminal, 2.52 in L x 3.07 in W x 5.62 in H
Attributes
Actuator TypeHandle
Country of OriginCN
Dimensions2.52 in L x 3.07 in W x 5.62 in H
Enclosure TypeIP20
Frequency Rating50/60 Hz
Horsepower25 hp, 27 hp
Interrupt Rating10 kA
ManufacturerEaton
MaterialNylon
Mounting TypeDIN Rail
Number of Poles3
Number of Wires2
Phase3
SeriesR9 Series
Short Circuit Current Rating100 kA
Size of Wire18 to 6 AWG
Temperature Rating-40 to 75 deg C
Terminal TypeLine/Load
Trip Type5-10X/Thermal Magnetic
TypeC-Frame Non-Fusible
Type / StyleC-Frame Non-Fusible
Voltage600 VAC
