Cutler-Hammer Series M22-K01SMC10

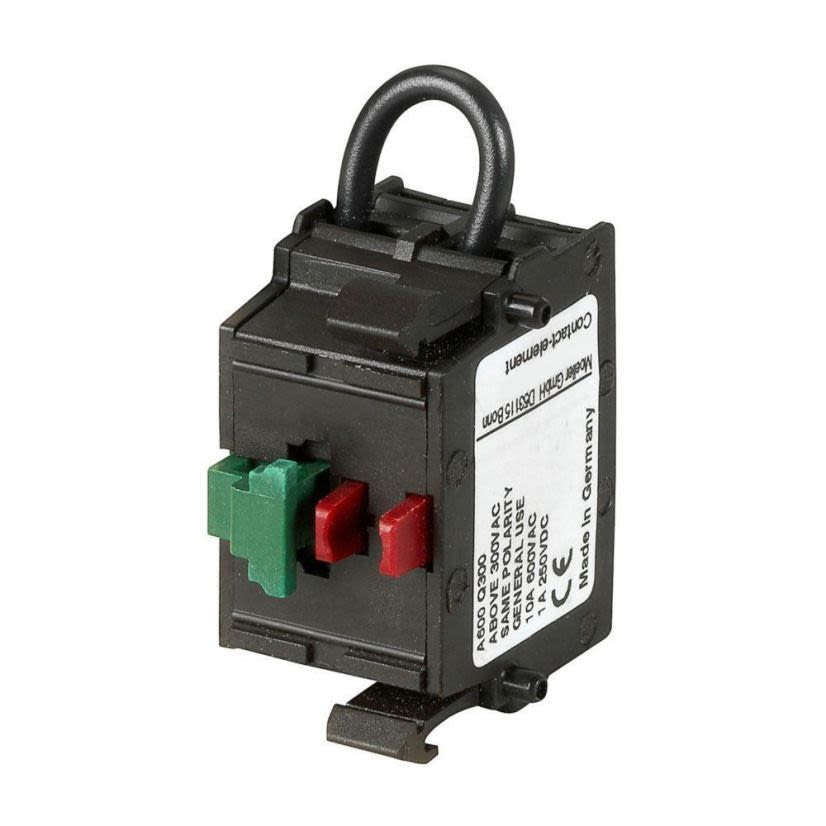

EATON M22-K01SMC10 Self-Monitoring Contact Block, 22.5 mm, 1NC Contact, 6 A at 240 V AC, 3 A at 24 V DC Contact, Black
Cutler-Hammer Series M22-K01SMC10
EATON M22-K01SMC10 Self-Monitoring Contact Block, 22.5 mm, 1NC Contact, 6 A at 240 V AC, 3 A at 24 V DC Contact, BlackNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #M22-K01SMC10
Werner Part #3916343
UPC786685476469
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #M22-K01SMC10
Werner Part #3916343
UPC786685476469
Product Description
EATON Contact Block, Self-Monitoring, Series: RMQ-Titan M22, 22.5 mm Size, 1NC Contact Configuration, 6 A at 240 V AC, 3 A at 24 V DC Contact, Pushbutton Operator, NEMA 4X/13 NEMA Rating, IP20/IP65 Enclosure, Screw Terminal, Front Mounting, Black, 1.46 in L x 1.18 in W x 1.03 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorBlack
Contact Configuration1NC
Contact Rating6 A at 240 V AC, 3 A at 24 V DC
Country of OriginUS
Dimensions1.46 in L x 1.18 in W x 1.03 in H
Enclosure TypeIP20/IP65
ManufacturerEaton
Mounting TypeFront
NEMA RatingNEMA 4X/13
Operator TypePushbutton
SeriesRMQ-Titan M22
Size22.5 mm
Terminal TypeScrew
Documents
Applications
Electrical Assemblies, Panels and EOEMs Applications
Features
- 6 A at 115/220/230/240 VAC, 4 A at 380/400/415 VAC, 2 A at 500 VAC, 3 A at 24 VDC, 1.7 A at 42 VDC, 1.2 A at 60 VDC, 0.8 A at 110 VDC, 0.3 A at 220 VDC
- NC contact blocks are positively driven
Specifications
- CSA C22.2 No. 14-05/94-91 File No. 12528
- CCC Marked
- CE Marked
- Lloyds Register Certified
- Gost-R Certified
- Bureau Veritas Certified
- UL 508 File No. E29184
- GL Certified
- IEC/EN 60947-5
Warranty
1 year
