Cutler-Hammer Series FH48

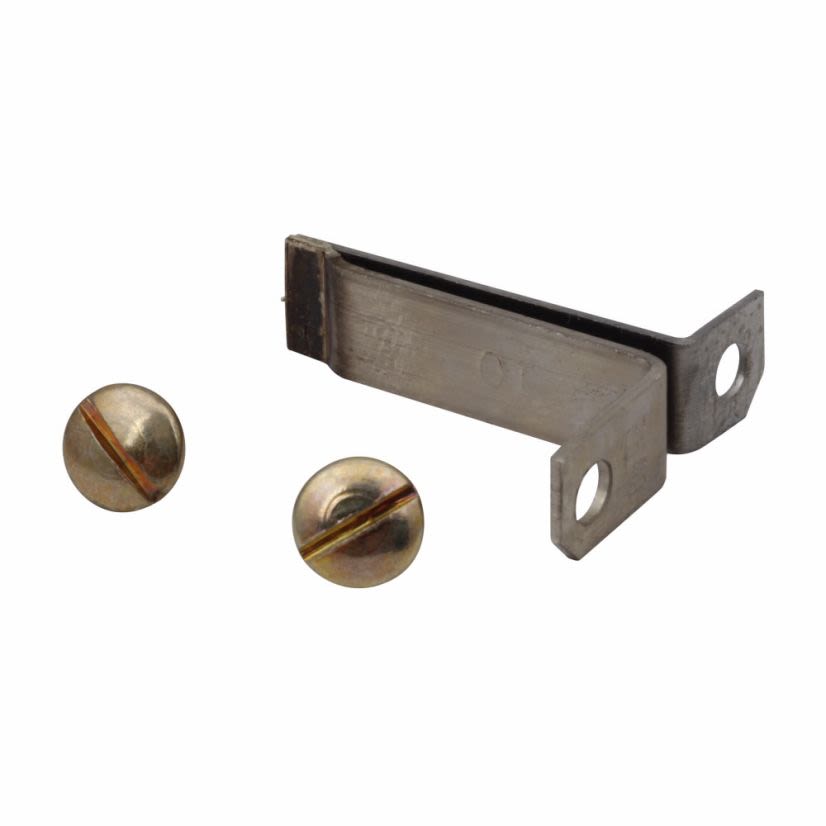

EATON FH48 Type B100 Overload Relay Heater
Cutler-Hammer Series FH48
EATON FH48 Type B100 Overload Relay HeaterNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Overload Relay Heater, Type B100, 16.8 to 18.3/20.1 to 21.9 A Ambient, 16.8 to 18.3/20.1 to 21.9 A Non-Comp Full Load, Fast/Thermal Trip, #1 Size, NEMA 0/1/2 Enclosure
Attributes
Documents
Applications
Features
Attributes
Country of OriginDO
Enclosure TypeNEMA 0/1/2
Full Load Current16.8 to 18.3/20.1 to 21.9 A Ambient, 16.8 to 18.3/20.1 to 21.9 A Non-Comp
ManufacturerEaton
Size#1
Type / StyleType B100
Documents
Applications
For A200 series NEMA 0/1/2 starter, safety, emergency exit devices, industrial facilities and factories facility applications
Features
- Select heater coils based on full load current (FLA) shown on motor nameplate
- Type A and b overload relay
- Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
- 16.8 to 18.3 A, 20.1 to 21.9 A non-compensating full load current
