Cutler-Hammer Series ECN0501BAA

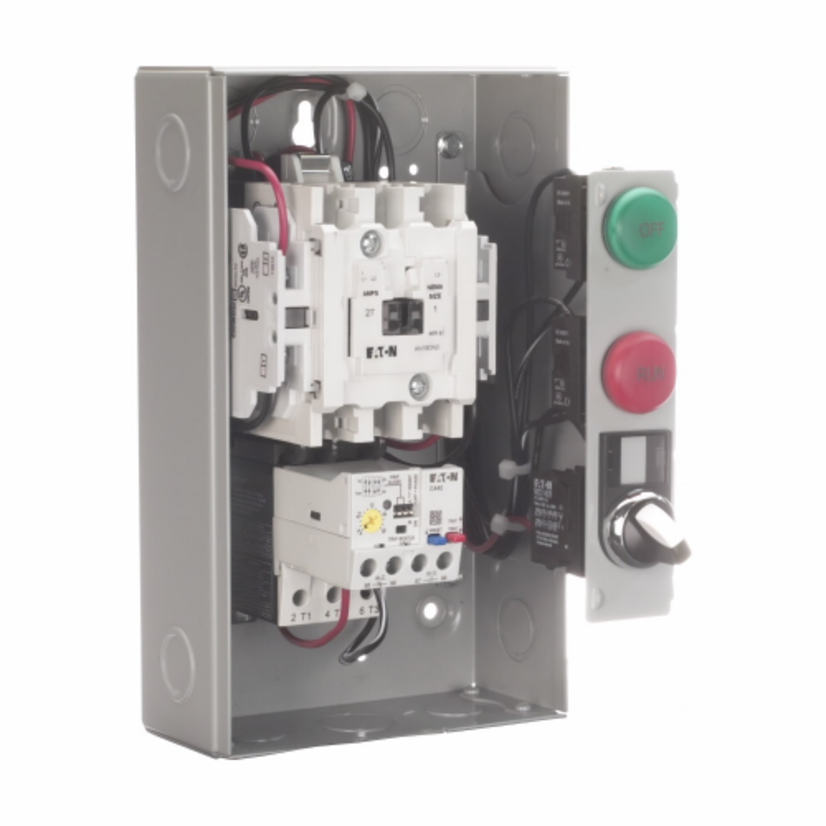

EATON Cutler-Hammer Series ECN0501BAA Freedom Full Voltage Non-Reversing Non-Combination Contactor, 220 VAC at 50 Hz, 240 VAC at 60 Hz V Coil, 18 A, 1NO Contact, 3 Poles
Cutler-Hammer Series ECN0501BAA
EATON Cutler-Hammer Series ECN0501BAA Freedom Full Voltage Non-Reversing Non-Combination Contactor, 220 VAC at 50 Hz, 240 VAC at 60 Hz V Coil, 18 A, 1NO Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Cutler-Hammer Series Non-Combination Contactor, Full Voltage Non-Reversing, Series: Freedom, 220 VAC at 50 Hz, 240 VAC at 60 Hz Coil, 18 A Maximum Load Current, 3 hp Coil Power Rating, 3 Pole, 1NO, 1 Auxiliary Contacts, NEMA 1 Enclosure, 11.6 in L x 7.7 in W x 7.4 in H
Attributes
Documents
Features
Attributes
Coil Power Rating3 hp
Coil Voltage220/240 VAC
Contact Configuration1NO
Country of OriginUnited States
Dimensions11.6 in L x 7.7 in W x 7.4 in H
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
Full Load CurrentMax: 18 A
ManufacturerEaton
Maximum Load Current18 A
Number of Auxiliary Contacts1
Number of Poles3
SeriesFreedom
SizeSZ 0
Type / StyleFull Voltage Non-Reversing
Documents
Features
C440 solid state electronic overload providing reliable, accurate and value driven protection, including communication capabilities, while reducing inventory carrying costs with wide FLA adjustment (5 - 1) and selectable trip classAdjustable bi-metallic ambient compensated overload relays with interchangeable heater packsA full line of Snap-on accessories top and side mounted auxiliary contacts, solid state and pneumatic timers and soonStraight-through wiring, line lugs at top, load lugs at bottomEncapsulated dual voltage/frequency magnet coils permanently marked with voltage, frequency and part numberNon-combination Single-phase non-reversing starterNEMA size 0
