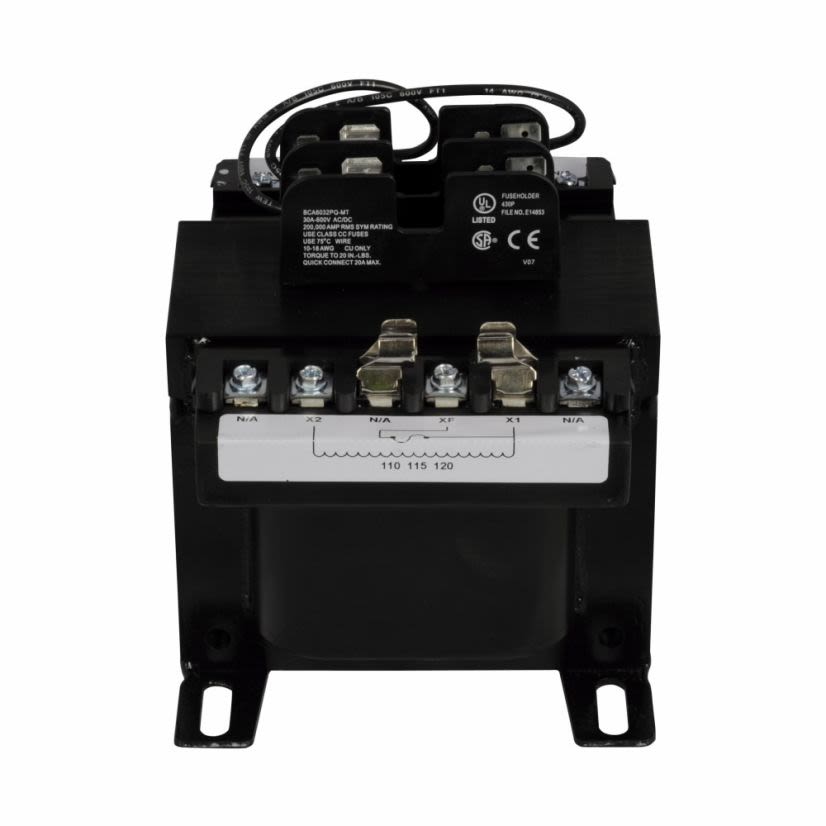

Cutler-Hammer Series C0350E5EFB
EATON Cutler-Hammer Series C0350E5EFB Industrial Control Transformer, MTE, PV: 200/220/440V, 208/230/460V, 240/480V, Taps: None, SV: 23/110V, 24/115V, 25/120V, 55°C, 350 VA , Cu magnet wire
Cutler-Hammer Series C0350E5EFB
EATON Cutler-Hammer Series C0350E5EFB Industrial Control Transformer, MTE, PV: 200/220/440V, 208/230/460V, 240/480V, Taps: None, SV: 23/110V, 24/115V, 25/120V, 55°C, 350 VA , Cu magnet wireNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Cutler-Hammer Series C0350E5EFB Industrial Control Transformer, MTE, PV: 200/220/440V, 208/230/460V, 240/480V, Taps: None, SV: 23/110V, 24/115V, 25/120V, 55°C, 350 VA , Cu magnet wire
Attributes
Documents
Specifications
Warranty
Attributes
Connection TypeCopper Magnet Wire
Country of OriginUnited States
Depth5.5 in
Dimensions5.354 in L x 5.236 in W x 6.142 in H
Frequency Rating50/60 Hz
Height5.875 in
Insulation Type130 deg C
Length5.5 in
ManufacturerEaton
Phase1 ph
Power Rating350 VA
Primary Voltage200/220/440, 208/230/460, 240/480 V
Secondary Voltage23/110, 24/115, 25/120 V
Temperature Rating55 deg C
TypeType MTE
Type / StyleIndustrial Control Transformer
Weight14.1 lb
Width5.25 in
Documents
Specifications
- Compliance: RoHS Compliant
- Certifications: cUL Certified | UL Listed | CSA Certified
- Factory-mounted two-pole primary fuse block for non-rejection type fuses
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
