Cutler-Hammer Series DT365UGK

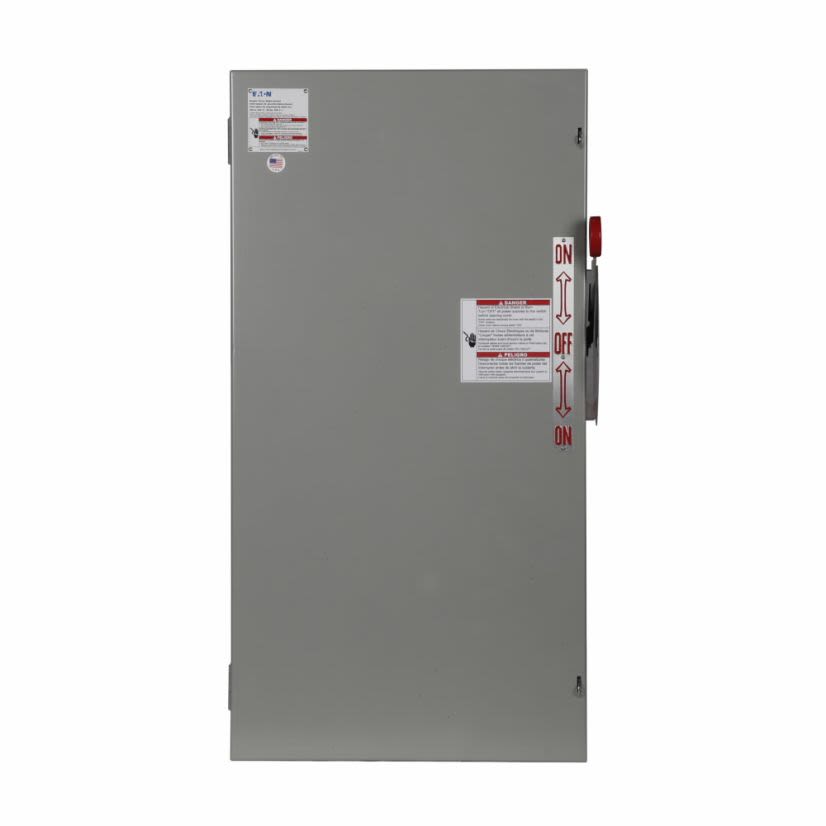

EATON Cutler-Hammer Series DT365UGK K Series Double Throw Heavy Duty Non-Fusible Safety Switch, 600 VAC, 250 VDC, 400 A, TPDT Contact, 3 Poles
Cutler-Hammer Series DT365UGK
EATON Cutler-Hammer Series DT365UGK K Series Double Throw Heavy Duty Non-Fusible Safety Switch, 600 VAC, 250 VDC, 400 A, TPDT Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DT365UGK
Werner Part #544207
UPC782113696430
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DT365UGK
Werner Part #544207
UPC782113696430
Product Description
EATON Cutler-Hammer Series Safety Switch, Double Throw Heavy Duty Non-Fusible, Series: K Series, 600 VAC, 250 VDC, 400 A, 3 ph, 3 Pole, 3 Wires, 100 kA Short Circuit, TPDT Contact Form, NEMA 1 Enclosure, 12.5 in L x 23.08 in W x 53.8 in H Dimensions, Steel, Painted
Attributes
Documents
Features
Attributes
Actuator TypeFront Handle
Country of OriginUnited States
Dimensions7-1/4 in L x 3 in W x 1 in H
Enclosure TypeNEMA 1
FinishPainted
Horsepower10 hp, 75 hp at 220/240 VAC, 150 hp at 440/480 VAC, 200 hp at 600 VAC
ManufacturerEaton Corp
Number of Poles3
Number of Wires3
Phase1/3 ph
SeriesRD Series
Short Circuit Current Rating200 kA
Temperature Rating-20 to 70 deg C
TypeNon-Fused Standard
Type / StyleDouble Throw Heavy Duty Non-Fusible
Voltage600 VAC, 250 VDC
Documents
Features
Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operationTwo points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact lifeTriple padlocking capability increases personnel safetyInterlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessaryClear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield100% rated device means the switch may be used continuously up to its rated currentMeets stringent UL 98 standards for safety, durability and reliability
