Cutler-Hammer Series DT324FRK

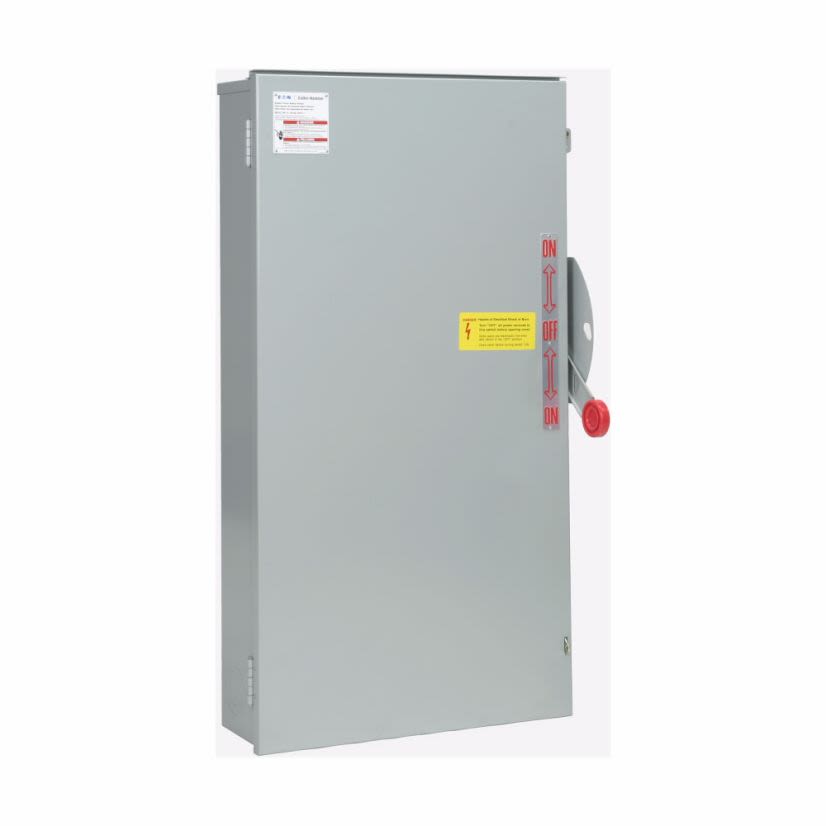

EATON Cutler-Hammer Series DT324FRK K Series Double Throw Fusible Heavy Duty Rainproof Safety Switch, 240 VAC, 200 A, 15 hp, 60 hp, TPDT Contact, 3 Poles
Cutler-Hammer Series DT324FRK
EATON Cutler-Hammer Series DT324FRK K Series Double Throw Fusible Heavy Duty Rainproof Safety Switch, 240 VAC, 200 A, 15 hp, 60 hp, TPDT Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DT324FRK
Werner Part #2385412
UPC782113614038
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DT324FRK
Werner Part #2385412
UPC782113614038
Product Description
EATON Cutler-Hammer Series Safety Switch, Double Throw Fusible Heavy Duty Rainproof, Series: K Series, 240 VAC, 200 A, 15 hp, 60 hp, 1/3 ph, 3 Pole, 3 Wires, 100 kA Short Circuit, TPDT Contact Form, Class H Insulation, NEMA 3R Enclosure, 11.26 in L x 6.1 in W x 51.36 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Features
Attributes
ColorBlack
Country of OriginUnited States
Dimensions6-1/2 in L x 4-1/4 in W x 3-3/4 in H
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
Horsepower15 hp, 60 hp
Insulation TypeClass H
ManufacturerEaton
MaterialThermoplastic
Number of Poles2
Number of Wires3
Phase1/3
Series163
Short Circuit Current Rating10 kA
Size of Wire6 AWG to 250 kcmil Cu Line/Load
Type0
Type / StyleDouble Throw Fusible Heavy Duty Rainproof
Voltage240 VAC
Features
Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operationVisible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact lifeTriple padlocking capability increases personnel safetyInterlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessaryClear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shieldComplete accessory and renewal parts data shown on inner door labelMeets stringent UL 98 standards for safety, durability and reliabilityWithout neutral15/60 hp at 240 VAC, 40 at 250 VDC hp rating
