Cutler-Hammer Series DH325FGK

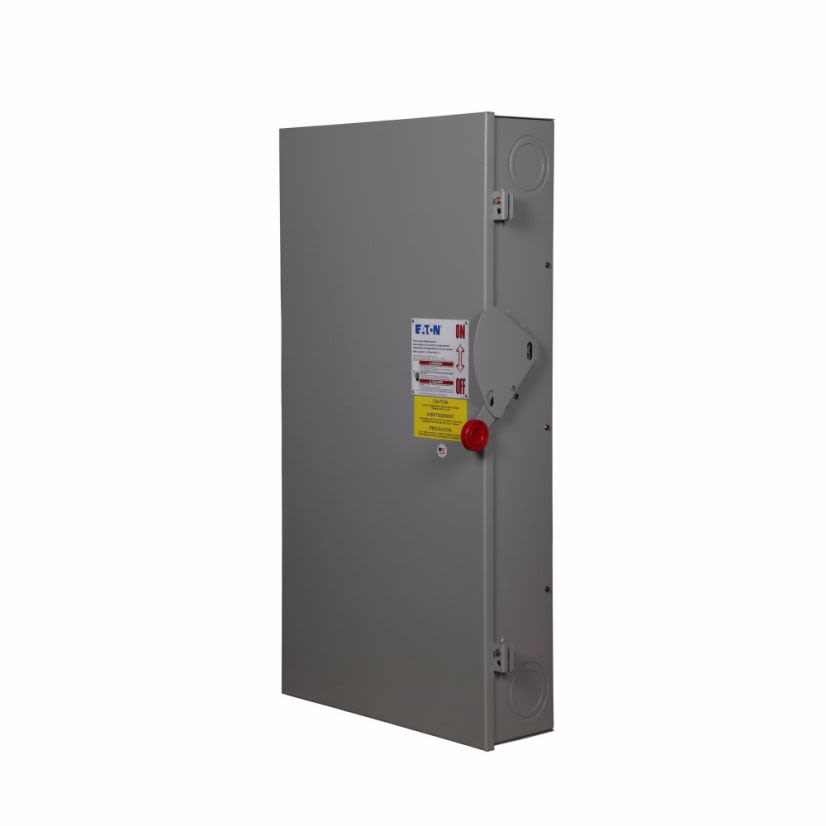

EATON Cutler-Hammer Series DH325FGK K Series Heavy Duty Fusible Single Throw Safety Switch, 240 VAC, 400 A, 50 hp, 125 hp, TPST Contact, 3 Poles
Cutler-Hammer Series DH325FGK
EATON Cutler-Hammer Series DH325FGK K Series Heavy Duty Fusible Single Throw Safety Switch, 240 VAC, 400 A, 50 hp, 125 hp, TPST Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH325FGK
Werner Part #540902
UPC782113207049
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH325FGK
Werner Part #540902
UPC782113207049
Product Description
EATON Cutler-Hammer Series Safety Switch, Heavy Duty Fusible Single Throw, Series: K Series, 240 VAC, 400 A, 50 hp, 125 hp, 3 ph, 3 Pole, 3 Wires, 100 kA Short Circuit, TPST Contact Form, Class H Insulation, NEMA 1 Enclosure, 45.5 in L x 24.38 in W x 10.25 in H Dimensions, Steel, Painted
Attributes
Documents
Features
Specifications
Attributes
Country of OriginUnited States
Enclosure TypeNEMA 1
FinishPainted
Horsepower50 hp, 125 hp
Insulation TypeClass H
ManufacturerEaton Corp
Number of Poles3
Number of Wires3
Phase3
SeriesK Series
Short Circuit Current Rating100 kA
Suitable For Use WithPower Break II Insulated Case Circuit Breaker
Type / StyleHeavy Duty Fusible Single Throw
Voltage240 VAC
Features
Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operationVisible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact lifeTriple padlocking capability increases personnel safetyInterlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessaryClear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shieldComplete accessory and renewal parts data shown on inner door labelMeets stringent UL 98 standards for safety, durability and reliabilityAccepts class H fuses7-1/2 hp at 480 VAC TD 1-phase, 10 hp at 600 VAC TD 1-phase, 15 hp at 480 VAC TD 3-phase, 20 hp at 600 VAC TD 3-phases maximum horsepower ratingCorrosion resistant
Specifications
36-Position
