Cutler-Hammer Series DH265FRK

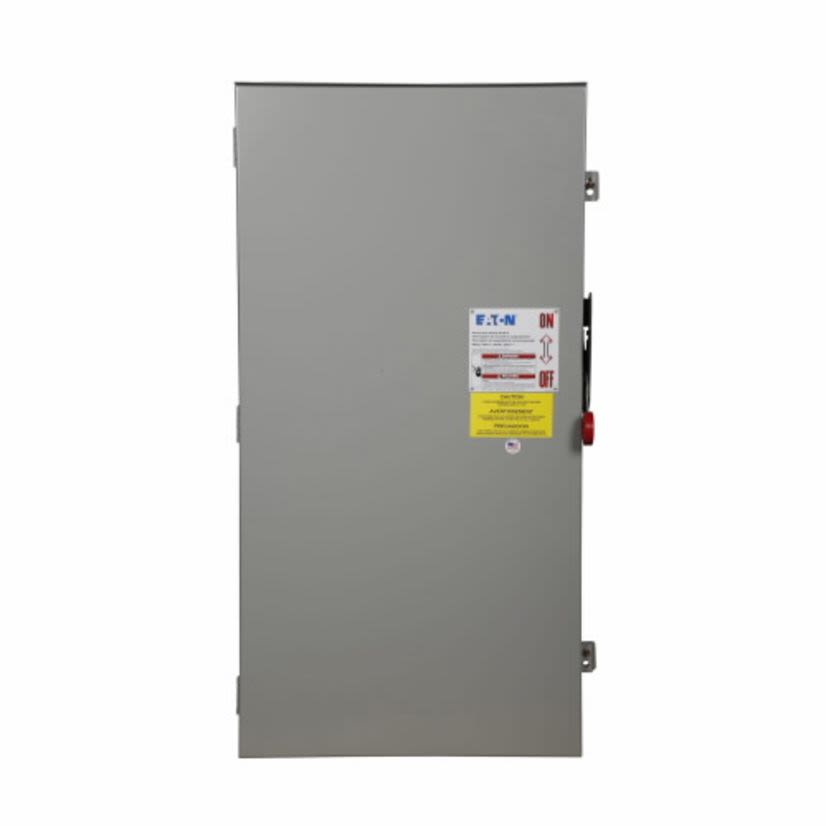

EATON Cutler-Hammer Series DH265FRK K Series Fusible Heavy Duty Rainproof Single Throw Safety Switch, 600 VAC, 400 A, 50 hp, DPST Contact, 2 Poles
Cutler-Hammer Series DH265FRK
EATON Cutler-Hammer Series DH265FRK K Series Fusible Heavy Duty Rainproof Single Throw Safety Switch, 600 VAC, 400 A, 50 hp, DPST Contact, 2 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH265FRK
Werner Part #3776330
UPC786685177168
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH265FRK
Werner Part #3776330
UPC786685177168
Product Description
EATON Cutler-Hammer Series Safety Switch, Fusible Heavy Duty Rainproof Single Throw, Series: K Series, 600 VAC, 400 A, 50 hp, 2 Pole, 2 Wires, 10 kA Short Circuit, DPST Contact Form, Class H Insulation, NEMA 3R Enclosure, 45.5 in L x 24.38 in W x 10.25 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Features
Specifications
Attributes
Country of OriginUnited States
Dimensions3.72 in L x 4.14 in W
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
Horsepower50 hp
Insulation TypeClass H
ManufacturerEaton
Number of Poles2
Number of Wires2
Series163
Short Circuit Current Rating10 kA
Suitable For Use With163 Series Power Distribution Block
Type / StyleFusible Heavy Duty Rainproof Single Throw
Voltage600 VAC
Features
Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operationVisible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact lifeTriple padlocking capability increases personnel safetyInterlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessaryClear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shieldComplete accessory and renewal parts data shown on inner door labelMeets stringent UL 98 standards for safety, durability and reliabilityAccepts class h fusesWithout neutral fuse configuration50 hp at 250 VDC maximum hp rating
Specifications
600 VAC Voltage Rating, 200 kA Short Circuit Current Rating, 14 AWG to 350 kcmil Cu Wire, Panel Mount
