Cutler-Hammer Series DH226NRK

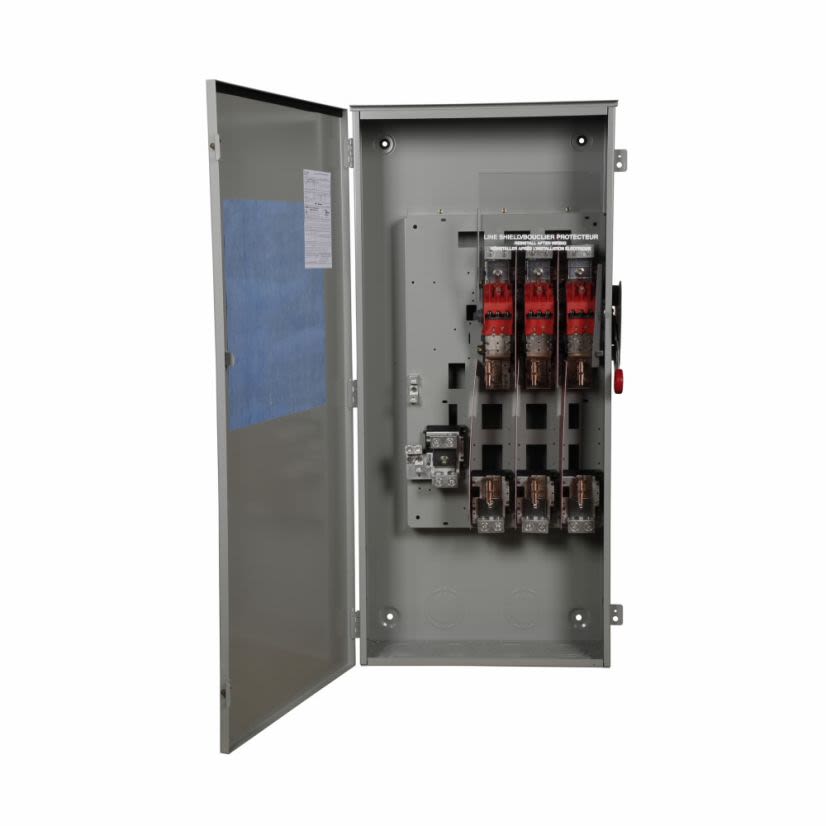

EATON Cutler-Hammer Series DH226NRK K Series Fusible Heavy Duty Rainproof Single Throw Safety Switch With Neutral, 240 VAC, 600 A, 75 hp, 200 hp, DPST Contact, 2 Poles
Cutler-Hammer Series DH226NRK
EATON Cutler-Hammer Series DH226NRK K Series Fusible Heavy Duty Rainproof Single Throw Safety Switch With Neutral, 240 VAC, 600 A, 75 hp, 200 hp, DPST Contact, 2 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH226NRK
Werner Part #533685
UPC782113207384
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH226NRK
Werner Part #533685
UPC782113207384
Product Description
EATON Cutler-Hammer Series Safety Switch, Fusible Heavy Duty Rainproof Single Throw, Series: K Series, 240 VAC, 600 A, 75 hp, 200 hp, 3 ph, 2 Pole, 3 Wires, 10 kA Short Circuit, DPST Contact Form, Class H Insulation, NEMA 3R Enclosure, 58 in L x 27-1/2 in W x 12 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Features
Attributes
Country of OriginUnited States
Dimensions47.6 in H x 20 in W x 11.7 in D
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
Horsepower75 hp, 200 hp
Insulation TypeClass H
ManufacturerEaton Corp
Number of Poles2
Number of Wires3
Phase3
SeriesK Series
Short Circuit Current Rating100 kA
Type / StyleFusible Heavy Duty Rainproof Single Throw
Voltage240 VAC
Features
Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operationVisible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact lifeTriple padlocking capability increases personnel safetyInterlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessaryClear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shieldComplete accessory and renewal parts data shown on inner door labelMeets stringent UL 98 standards for safety, durability and reliabilityAccepts class h fusesEnhanced visible blades75 hp at 240 VAC standard 3-phase, 200 hp at 240 VAC TD 3-phases maximum hp rating
