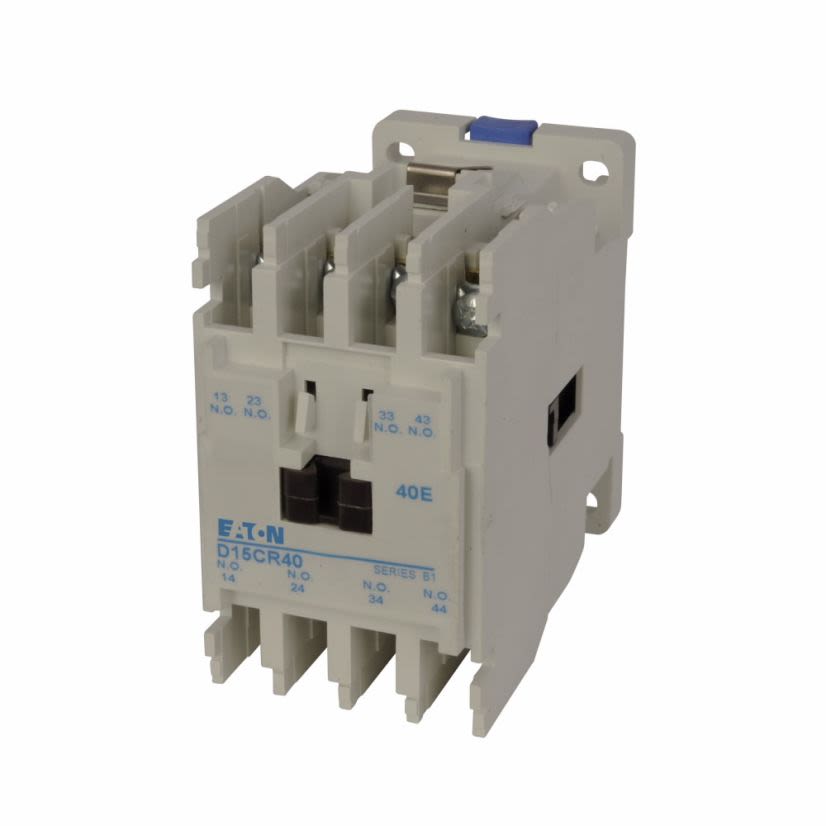

Cutler-Hammer Series D15CR40AB
EATON Cutler-Hammer Series D15CR40AB D15 Freedom Fixed Contact Multi-Pole AC Control Relay, 10 A, 4NO Contact, 110/120 VAC V Coil
Cutler-Hammer Series D15CR40AB
EATON Cutler-Hammer Series D15CR40AB D15 Freedom Fixed Contact Multi-Pole AC Control Relay, 10 A, 4NO Contact, 110/120 VAC V CoilNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #D15CR40AB
Werner Part #539002
UPC782113806921
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #D15CR40AB
Werner Part #539002
UPC782113806921
Product Description
EATON Cutler-Hammer Series AC Control Relay, Fixed Contact Multi-Pole, Series: D15 Freedom, 10 A, 50/60 Hz, 110/120 VAC Coil, 4NO, 60 A Make, 6 A Break Contact, 4 Pole, DIN Rail Mount, Finger Safe/Pressure Plate Terminal, 3.3 in L x 1.8 in W x 2.96 in H
Attributes
Documents
Features
Attributes
Coil Voltage110/120 VAC
Contact Form4NO
Contact Rating60 A Make/6 A Break
Country of OriginDominican Republic
Dimensions3.3 in L x 1.8 in W x 2.96 in H
Enclosure TypeOpen
Frequency Rating50/60 Hz
ManufacturerEaton Corp
Mounting TypeDIN Rail
Number of Poles4
SeriesD15 Freedom
Terminal TypeFinger Safe/Pressure Plate
Type / StyleFixed Contact Multi-Pole
Features
Contact pole terminals have captive, backed out, self-lifting pressure plates for reduced wiring timeTerminals are shrouded or finger proofed to reduce possibility of electrical shockWide spacing of contacts simplifies installation, contact testing and maintenanceContacts are electrically and mechanically isolated from each other for added safetySurge suppressors mount in contact cavity, limiting high transient voltages resulting from de-energizing relay coil, for protection of sensitive instruments and solid state devicesState indicator visually shows relay on/OFF statusRelay base has mounting holes on 35 x 60 mm centers, permitting direct replacement of competitive relaysRelay also mounts on 35 mm DIN-rail as standard
