Cutler-Hammer Series D15CR22BB

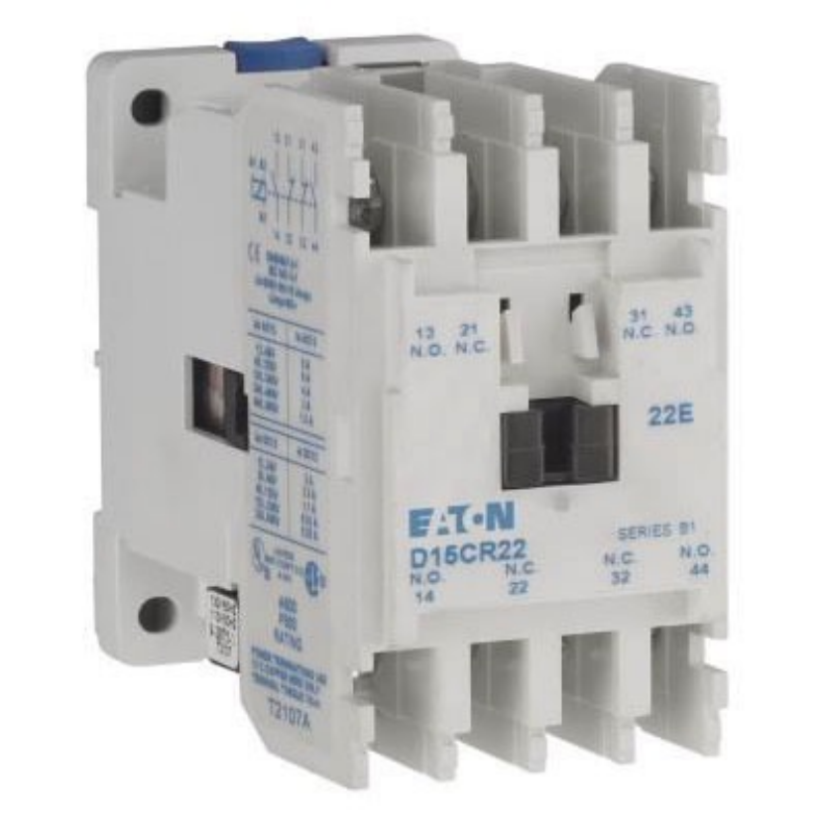

EATON Cutler-Hammer Series D15CR22BB D15 Freedom Fixed Contact Multi-Pole AC Control Relay, 10 A, 2NO-2NC Contact, 220/240 VAC V Coil
Cutler-Hammer Series D15CR22BB
EATON Cutler-Hammer Series D15CR22BB D15 Freedom Fixed Contact Multi-Pole AC Control Relay, 10 A, 2NO-2NC Contact, 220/240 VAC V CoilInventory Not Available
Inventory Not Available
Product Description
EATON Cutler-Hammer Series AC Control Relay, Fixed Contact Multi-Pole, Series: D15 Freedom, 10 A, 50/60 Hz, 220/240 VAC Coil, 2NO-2NC, 30 A Make, 3 A Break Contact, 4 Pole, DIN Rail Mount, Finger Safe/Pressure Plate Terminal, 3.3 in L x 1.8 in W x 2.96 in H
Attributes
Documents
Features
Attributes
Coil Voltage220/240 VAC
Contact Form2NO-2NC
Contact Rating30 A Make/3 A Break
Country of OriginDominican Republic
Dimensions3.3 in L x 1.8 in W x 2.96 in H
Enclosure TypeOpen
Frequency Rating50/60 Hz
ManufacturerEaton
Mounting TypeDIN Rail
Number of Poles4
SeriesD15 Freedom
Terminal TypeFinger Safe/Pressure Plate
Type / StyleFixed Contact Multi-Pole
Features
Contact pole terminals have captive, backed out, self-lifting pressure plates for reduced wiring timeTerminals are shrouded or finger proofed to reduce possibility of electrical shockWide spacing of contacts simplifies installation, contact testing and maintenanceContacts are electrically and mechanically isolated from each other for added safetySurge suppressors mount in contact cavity, limiting high transient voltages resulting from de-energizing relay coil, for protection of sensitive instruments and solid state devicesState indicator visually shows relay on/OFF statusRelay base has mounting holes on 35 x 60 mm centers, permitting direct replacement of competitive relaysRelay also mounts on 35 mm DIN-rail as standard
