Cutler-Hammer Series CHF235

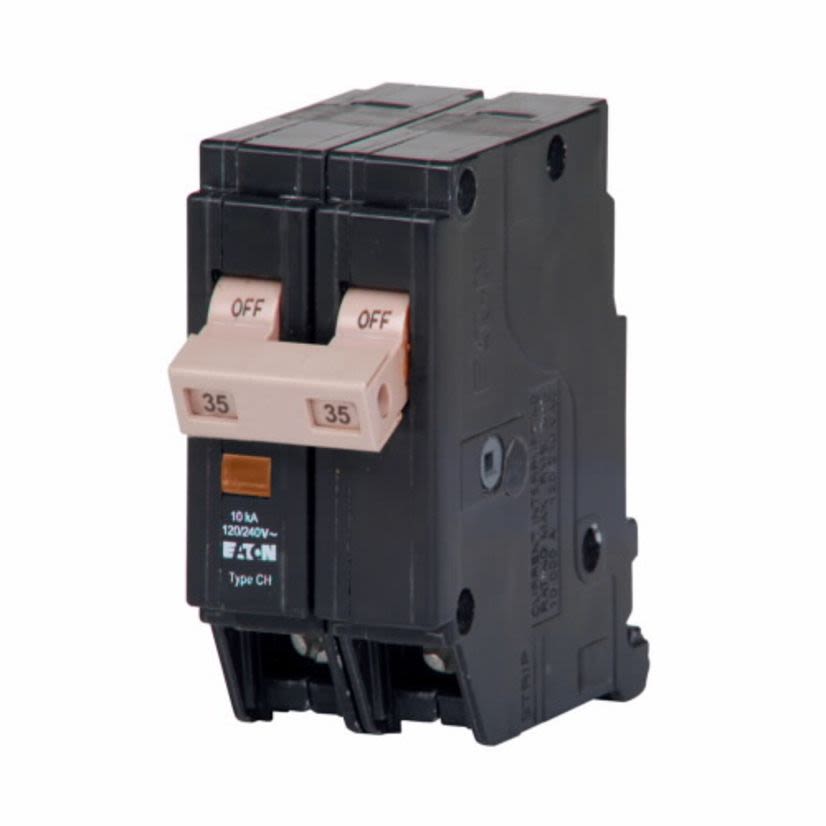

EATON CHF235 Type CHF Standard Thermal Magnetic Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 35 A, 10 kAIC Interrupt, 2 Poles
Cutler-Hammer Series CHF235
EATON CHF235 Type CHF Standard Thermal Magnetic Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 35 A, 10 kAIC Interrupt, 2 PolesIn Stock: 11more info
|
BrandCutler-Hammer Series
MFG #CHF235
Werner Part #3961834
UPC786685532158
In Stock: 11more info
|
BrandCutler-Hammer Series
MFG #CHF235
Werner Part #3961834
UPC786685532158
Product Description
EATON Thermal Magnetic Circuit Breaker, Type CHF Standard, 120/240 V AC, 35 A, 10 kAIC Interrupt, 2 Pole, 1 ph, Toggle Handle Actuator, Box Lug, (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 3 in L x 3/4 in W x 3 in H
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeHandle
Connection TypeBox Lug
Country of OriginDO
Dimensions3 in L x 3/4 in W x 3 in H
Enclosure TypeNEMA AB1-1993
FrameF
Frequency Rating50/60 Hz
Interrupt Rating10 kAIC
ManufacturerEaton
Mounting TypePanel
Number of Poles2
Phase1
SeriesC Series
Size of Wire14 to 8 AWG, 14 to 10 AWG
Temperature Rating60 to 75 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeType CHF Standard
Type / StyleSTANDARD
Voltage120/240 VAC
Applications
Generation, Renewable Energy, Alternative Energy, Conventional Energy, Conventional Energy, Datacenters, CI and Hyper Converged IT Space, Marine Vessels and Equipment
Warranty
Limited Lifetime
Features
- (1) 14 to 8 AWG, (2) 14 to 10 AWG copper aluminum at 60 to 75 deg C wire range
- Easy to install
- Easy to reset
- Best in class performance
- Circuit breaker is clearly marked identifying amperage, ratings and the brand
- Trip flag visibly indicates breaker status
- 3/4 in per pole
