Cutler-Hammer Series CE15JN3AB

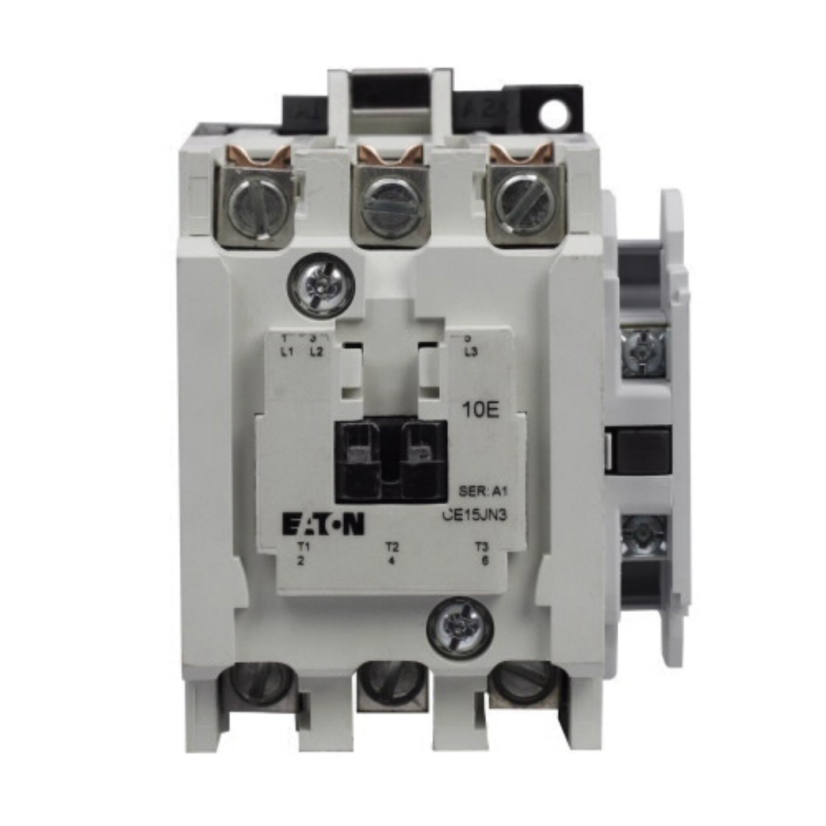

EATON Cutler-Hammer Series CE15JN3AB Freedom J-Frame Non-Reversing IEC Contactor With Steel Mounting Plate, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, 60 A, 3NO Contact, 3 Poles
Cutler-Hammer Series CE15JN3AB
EATON Cutler-Hammer Series CE15JN3AB Freedom J-Frame Non-Reversing IEC Contactor With Steel Mounting Plate, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, 60 A, 3NO Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Cutler-Hammer Series IEC Contactor, J-Frame Non-Reversing, Series: Freedom, 110 VAC at 50 Hz, 120 VAC at 60 Hz Coil, 60 A Maximum Load Current, 5 hp Coil Power Rating, 3 Pole, 50/60 Hz, 3NO, 3 Auxiliary Contacts, Screw Terminal, Open Enclosure, 3000000 Cycles Operating Cycles, -5 to 65 deg C Operating, Surface Mount, 4.22 in L x 2.56 in W x 4.27 in H
Attributes
Documents
Features
Attributes
Coil Power Rating5 hp
Coil Voltage110 VAC at 50 Hz, 120 VAC at 60 Hz
Contact Configuration3NO
Country of OriginDominican Republic
Dimensions4.22 in L x 2.56 in W x 4.27 in H
Enclosure TypeOpen
Frequency Rating50/60 Hz
Full Load CurrentMax: 60 A
ManufacturerEaton Corp
Maximum Load Current60 A
Mounting TypeSurface
Number of Auxiliary Contacts3
Number of Poles3
Operating Temperature-5 to 65 deg C
Package TypeEACH
SeriesFreedom
Terminal TypeScrew
Type / StyleJ-Frame Non-Reversing
Features
Horizontal or vertical mounting on upright pane allows for application freedomScrew type power terminals have captive, backed out self lifting pressure plates with screws result in reduced wiring timeAccessible terminals allow for ease of use and are convenient for simple wiringTop located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layoutNo overload relayFor motor and power control equipment applications
