Cutler-Hammer Series CCV2100X

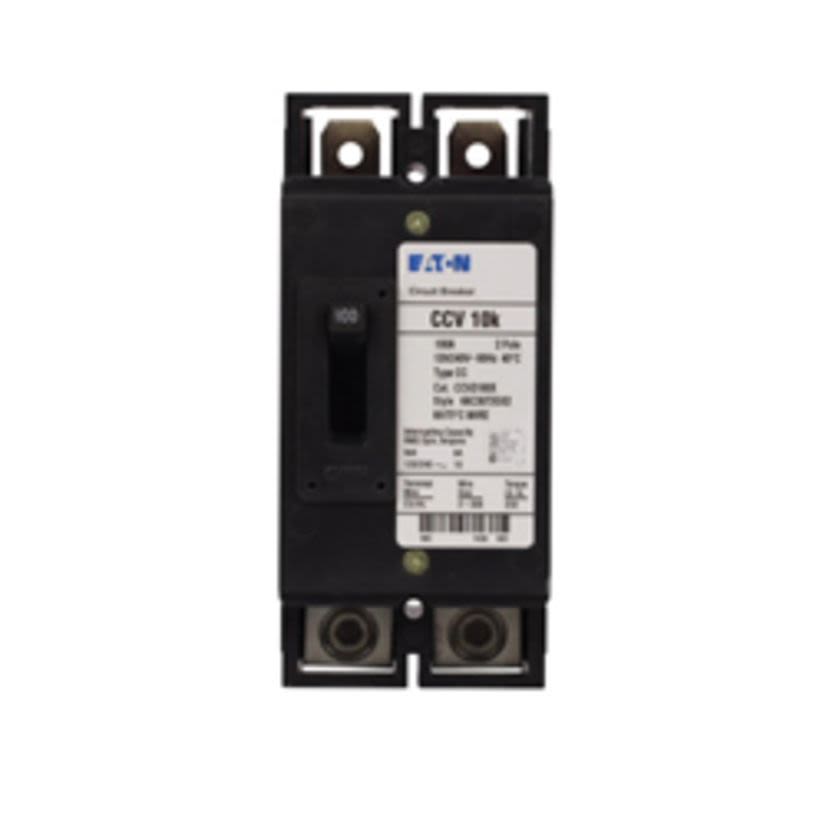

EATON CCV2100X Type CCV Tenant Main Circuit Breaker, 120/240 V AC, 100 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Cutler-Hammer Series CCV2100X
EATON CCV2100X Type CCV Tenant Main Circuit Breaker, 120/240 V AC, 100 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CCV2100X
Werner Part #3888845
UPC786685368344
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CCV2100X
Werner Part #3888845
UPC786685368344
Product Description
EATON Main Circuit Breaker, Type CCV Tenant, 120/240 V AC, 100 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Load Connection, 2/0 AWG to 300 kcmil Copper/Aluminum Wire, 60 to 75 deg C, 8 in L x 4-1/2 in W x 5-1/2 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeLoad
Country of OriginDO
Dimensions8 in L x 4-1/2 in W x 5-1/2 in H
Enclosure TypeNEMA AB1-1993
FrameJ
Frequency Rating50/60 Hz
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypeBolted-On
Number of Poles2
Phase1
SeriesC Series
Size of Wire4 AWG to 350 kcmil
Temperature Rating60 to 75 deg C
Trip TypeThermal Magnetic
TypeType CCV Tenant
Type / StyleType CCV
Voltage120/240 VAC
Applications
Circuit Protection and Type ECC Unit Enclosure Applications
Warranty
1 year Commercial, Limited Lifetime Residential
Features
- 2/0 AWG to 300 kcmil copper aluminum at 60 to 75 deg C wire range
