Cutler-Hammer Series C0150E2AFB

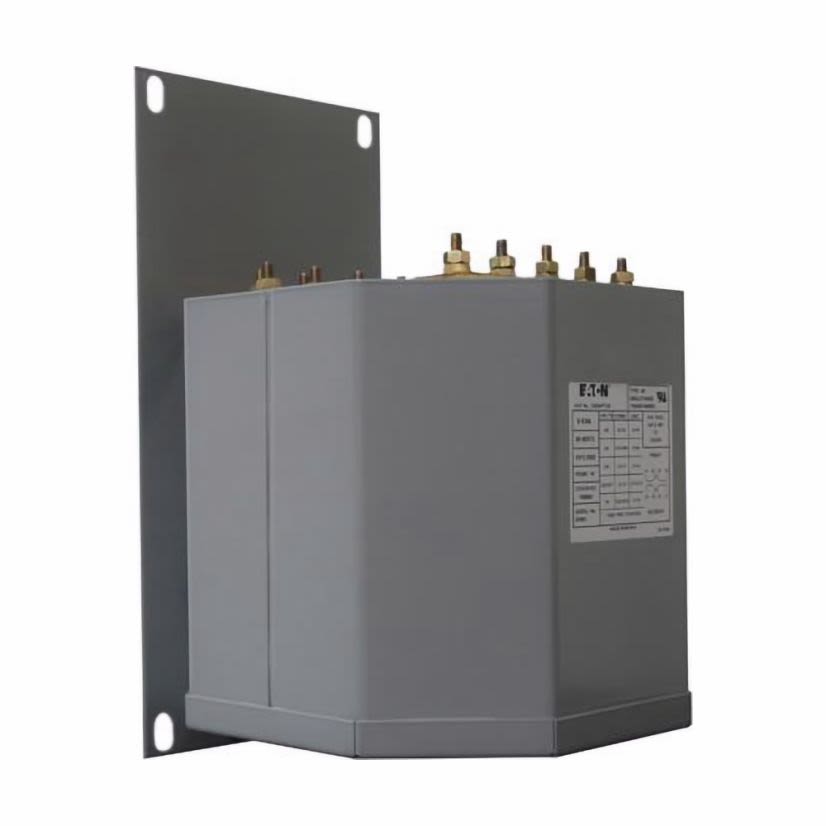

EATON Cutler-Hammer Series C0150E2AFB Type MTE Industrial Control Transformer, 220/440 VAC, 230/460 VAC, 240/480 VAC Primary, 110/115/120 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase
Cutler-Hammer Series C0150E2AFB
EATON Cutler-Hammer Series C0150E2AFB Type MTE Industrial Control Transformer, 220/440 VAC, 230/460 VAC, 240/480 VAC Primary, 110/115/120 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 PhaseOut of Stockmore info
|
Out of Stockmore info
|
Product Description
EATON Cutler-Hammer Series Control Transformer, Type MTE Industrial, 220/440 VAC, 230/460 VAC, 240/480 VAC Primary, 110/115/120 VAC Secondary, 150 VA Power, 50/60 Hz Frequency, 1 ph, Copper Magnet Wire/Molded-In Connection, 55 deg C, Silicon Steel Housing Material, 4.016 in L x 3.74 in W x 4.567 in H Dimensions
Attributes
Documents
Features
Attributes
Connection TypeCopper Magnet Wire/Molded-In
Country of OriginUnited States
Dimensions4.016 in L x 3.74 in W x 4.567 in H
Frequency Rating50/60 Hz
Housing MaterialSilicon Steel
ManufacturerEaton
Phase1 ph
Power Rating150 VA
Primary Voltage220/440, 230/460, 240/480 V
Secondary Voltage120/115/110 V
Temperature Rating55 deg C
TypeType MTE
Type / StyleType MTE Industrial
Features
Molded in terminals allow for maximum durabilityCopper magnet wire provides for high quality, efficient operationEpoxy encapsulated coils provide protection from moisture and contaminants commonly found in industrial environmentsLaminations of high quality silicon steel to minimize core losses and optimize performanceThe use of grounded or ungrounded circuits that are independent of the power or lighting grounds affords greater safety to the operatorFactory mounted 2-pole primary fuse block for rejection type fusesCopper windingsNo taps
