Bussmann Series FRN-R-25

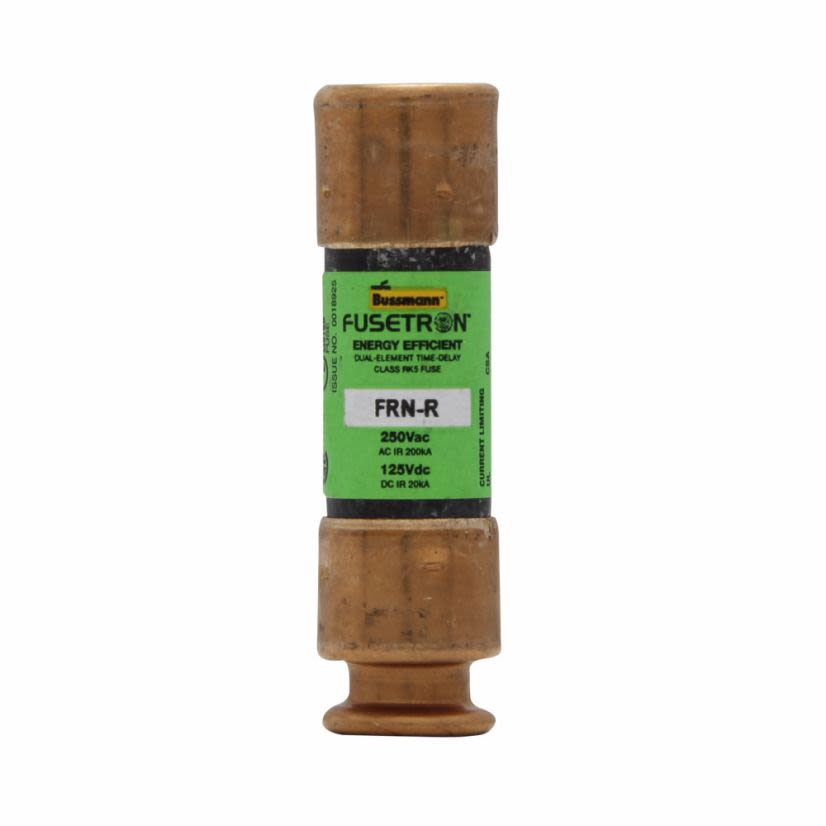

Bussmann Fusetron FRN-R-25 Current Limiting Time Delay Fuse, 25 A, 250 V AC/125 V DC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Series FRN-R-25
Bussmann Fusetron FRN-R-25 Current Limiting Time Delay Fuse, 25 A, 250 V AC/125 V DC, 20/200 kA Interrupt, RK5 Class, Cylindrical BodyIn Stock: 19more info
|
In Stock: 19more info
|
Product Description
Bussmann Fusetron Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 25 A, 250 V AC/125 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size0.56 in Dia x 2 in L
Body TypeCylindrical
ClassRK5
Country of OriginMX
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating20/200 kA
ManufacturerEaton
MaterialFiberglass
Mounting TypeHolder
Rejection/Non-RejectionRejection
Response Time10 s at 500%
SeriesFRN-R
Terminal TypeFerrule
Type / StyleCurrent Limiting, Time Delay
Voltage Rating250 V AC/125 V DC
Documents
Applications
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security Systems
Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from single phasing on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s
- Fusetron fuses are on average 23% more energy efficient than the next leading brand
Specifications
Standard: UL 248-12, CSA, CE
